Turbopuls vibration nozzles

The enz^® Turbopuls nozzle is provided with an eccentrically supported rotor, which produces very fast vibrations and pulsating jets. The resulting pulsations become as strong that deposits up to 10cm thickness are disintegrated. Thanks to the application of the Turbopuls nozzle, the more expensive work with the cutting tools or with the chain flail head can be avoided in many cases.
Important: Turbopuls nozzles develop strong hydraulic impacts and vibrations. This can possibly cause damage in some sort of pipes (e.g. earthenware pipes, thinwalled plastic pipes or badly-bedded PVC pipes).

Applications

The Turbopuls nozzles are conceived to remove middle-hard deposits in pipes of plastic, steel or concrete

Turbopuls 120 - Removing limestone deposits in a sewer pipe

Turbopuls 60 1/2" - 3/4"

Item number	Item name
410.060A	Turbopuls 60	1/2"	100 - 200	60	1 x M6	3 x M8	64 x 180	3.00	ok	200
410.060B	Turbopuls 60	3/4"	100 - 200	60	1 x M6	3 x M8	64 x 180	2.40	ok	200

Turbopuls 80 1" - 1 1/4"

Item number	Item name
410.080A	Turbopuls 80	1/2"	150 - 300	80	1 x M6	3 x M8	78 x 210	4.30	ok	200
410.080B	Turbopuls 80	3/4"	150 - 300	80	1 x M6	3 x M8	78 x 210	4.30	ok	200

Turbopuls 100 1/2" - 3/4"

Item number	Item name
410.080A-G	Turbopuls with big head 100	1/2"	150 - 300	80	1 x M6	3 x M8	100 x 210	5.20	ok	200
410.080B-G	Turbopuls with big head 100	3/4"	150 - 300	80	1 x M6	3 x M8	100 x 210	5.20	ok	200

Turbopuls 120 1" - 1 1/4"

Item number	Item name
410.120A	Turbopuls 120	1"	200 - 1000	150	1 x M8	6 x M10	-	120 x 320	14.50	ok	200
410.120B	Turbopuls 120	1 1/4"	200 - 1000	150	1 x M8	6 x M10	-	120 x 320	14.50	ok	200

Turbopuls 120 with soft impact head 1" – 1 1/4"

Item number	Item name
410.120A-W	Turbopuls 120 with soft impact head	1"	200 - 1000	150	1 x M8	6 x M10	-	120 x 320	14.50	ok	200
410.120B-W	Turbopuls 120 with soft impact head	1 1/4"	200 - 1000	150	1 x M8	6 x M10	-	120 x 320	14.50	ok	200

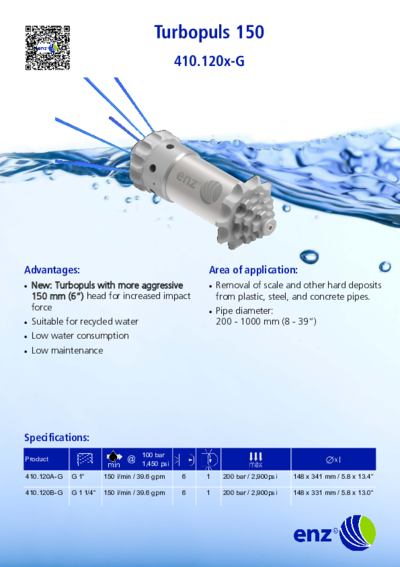

Turbopuls 150 1" – 1 1/4"

Item number	Item name
410.120A-G	Turbopuls with big head 150	1"	200 - 1000	150	1 x M8	6 x M10	-	148 x 341	15.14	ok	200
410.120B-G	Turbopuls with big head 150	1 1/4"	200 - 1000	150	1 x M8	6 x M10	-	148 x 331	15.00	ok	200

Accessory and wearing parts Turbopuls

Item number		Item name
258.10	Pulling eye for Turbopuls 60 and 80	Pulling eye for Turbopuls 60 and 80					0.00
258.16	Pulling eye for Turbopuls 120	Pulling eye for Turbopuls 120					0.30
00410.08010	Pointed center for Turbopuls 60 and 80	Pointed center for Turbopuls 60 and 80				16 x 60	0.07
30.100Z	Pull part	Pull part	1" m - 1" f	55		50 x 90	0.67	250
410.0805	Impact head standard for Turbopuls 80	Impact head standard for Turbopuls 80				78 x 54	1.13
410.08052	Impact head for Turbopuls 100	Impact head for Turbopuls 100				100 x 54	1.13
00410.12010	Pointed center for Turbopuls 120	Pointed center for Turbopuls 120				20 x 70	0.12
410.1205	Impact head standard for Turbopuls 120	Impact head standard for Turbopuls 120				120 x 70	2.37
410.12051	Impact head soft for Turbopuls 120	Impact head soft for Turbopuls 120				120 x 70	2.37
410.12052	Impact head for Turbopuls 150	Impact head for Turbopuls 150				148 x 54	2.90
410.1209	Twin Kit for 410.120	Twin Kit for 410.120	1" / 1 1/4"	ab / from / de 400	2 x 150	360 x 700	9.00	200
95.F100M075150	Reduction hose	Reduction hose	3/4" m - 1" f			15.9mm x 1.36m, Ø In 15.9mm Ø Out 24.6mm	1.12	200
