Turbopuls vibration nozzles

The enz^® Turbopuls nozzle is provided with an eccentrically supported rotor, which produces very fast vibrations and pulsating jets. The resulting pulsations become as strong that deposits up to 10cm (4") thickness are disintegrated. Thanks to the application of the Turbopuls nozzle, the more expensive work with the cutting tools or with the chain flail head can be avoided in many cases.
Important: Turbopuls nozzles develop strong hydraulic impacts and vibrations. This can possibly cause damage in some sort of pipes (e.g. earthenware pipes, thinwalled plastic pipes or badly-bedded PVC pipes).

Applications

The Turbopuls nozzles are conceived to remove middle-hard deposits in pipes of plastic, steel or concrete

Turbopuls 120 - Removing limestone deposits in a sewer pipe

Turbopuls 60 1/2" - 3/4"

Item number	Item name
410.060A	Turbopuls 2.5"	1/2"	4 - 8	16	1 x M6	3 x M8	2.5 x 7.1	5.29	ok	2,900
410.060B	Turbopuls 2.5"	3/4"	4 - 8	16	1 x M6	3 x M8	2.5 x 7.1	5.29	ok	2,900

Turbopuls 80 1" - 1 1/4"

Item number	Item name
410.080A	Turbopuls 3.1"	1/2"	6 - 12	21	1 x M6	3 x M8	3.1 x 8.3	9.48	ok	2,900
410.080B	Turbopuls 3.1"	3/4"	6 - 12	21	1 x M6	3 x M8	3.1 x 8.3	9.48	ok	2,900

Turbopuls 100 1/2" - 3/4"

Item number	Item name
410.080A-G	Turbopuls with big head 3.9"	1/2"	6 - 12	21	1 x M6	3 x M8	3.9 x 8.3	9.48	ok	2,900
410.080B-G	Turbopuls with big head 3.9"	3/4"	6 - 12	21	1 x M6	3 x M8	3.9 x 8.3	9.48	ok	2,900

Turbopuls 120 1" - 1 1/4"

Item number	Item name
410.120A	Turbopuls 4.7"	1"	8 - 39	40	1 x M8	6 x M10	-	4.7 x 12.6	31.97	ok	2,900
410.120B	Turbopuls 4.7"	1 1/4"	8 - 39	40	1 x M8	6 x M10	-	4.7 x 12.6	31.97	ok	2,900

Turbopuls 120 with soft impact head 1" – 1 1/4"

Item number	Item name
410.120A-W	Turbopuls 4.7" with soft impact head	1"	8 - 39	40	1 x M8	6 x M10	-	4.7 x 12.6	31.97	ok	2,900
410.120B-W	Turbopuls 4.7" with soft impact head	1 1/4"	8 - 39	40	1 x M8	6 x M10	-	4.7 x 12.6	31.97	ok	2,900

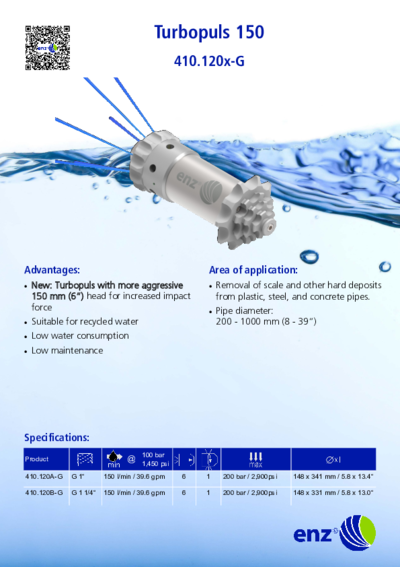

Turbopuls 150 1" – 1 1/4"

Item number	Item name
410.120A-G	Turbopuls with big head 5.8"	1"	7.9 - 39.4	39.6	1 x M8	6 x M10	-	5.8 x 13.4	33.4	ok	2,900
410.120B-G	Turbopuls with big head 5.8"	1 1/4"	7.9 - 39.4	39.6	1 x M8	6 x M10	-	5.8 x 13.0	33.3	ok	2,900

Accessory and wearing parts Turbopuls

Item number		Item name
258.10	Pulling eye for Turbopuls 2.5" and 3.1"	Pulling eye for Turbopuls 2.5" and 3.1"
258.16	Pulling eye for Turbopuls 4.7"	Pulling eye for Turbopuls 4.7"
00410.08010	Pointed center for Turbopuls 2.5" and 3.1"	Pointed center for Turbopuls 2.5" and 3.1"				0.6 x 2.4	0.15
00410.12010	Pointed center for Turbopuls 4.7"	Pointed center for Turbopuls 4.7"				0.8 x 2.8	0.27
30.100Z	Pull part	Pull part	1" m - 1" f	2		2.0 x 3.5	1.77	3,625
410.0805	Impact head standard for Turbopuls 80	Impact head standard for Turbopuls 80				3.1 x 2.1	2.5
410.08052	Impact head for Turbopuls 100	Impact head for Turbopuls 100				4.1 x 2.1	2.5
410.1205	Impact head standard for Turbopuls 120	Impact head standard for Turbopuls 120				4.72 x 2.75	5.22
410.12051	Impact head soft for Turbopuls 120	Impact head soft for Turbopuls 120				4.72 x 2.75	5.22
410.12052	Impact head for Turbopuls 150	Impact head for Turbopuls 150				5.8 x 2.1	6.53

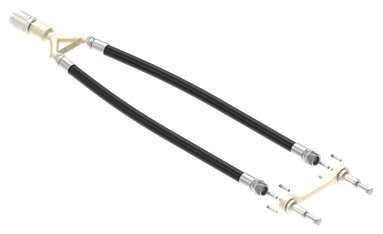

410.1209	Tandem for 410.120	Tandem for 410.120	1" / 1 1/4"	from 16	2 x 39.63	14.2 x 27.6	15.43	2,900
95.F100M075150	Reduction hose	Reduction hose	3/4" m - 1" f			5/8“ x 1.5 yard, Ø In 0.63“ Ø Out 0.97“	2.47	2,900
