Standard cleaning nozzles

Made of wear-resistant, hardened steel, provided with front jet insert and blind plug (interchangeable). Angle of jet backwards, sturdy wall thickness, long service life and a minimum of wear and tear. All nozzles from art.30.038 onward are provided with steelceramic inserts. Because of this, the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer.

Applications

Appropriate for removal of sludge deposits and cloggings

Silverline standard cleaning nozzles 1/8"

Item number	Item name
30.012SL10	Standard nozzle 10 l/min 100 bar	1/8"	20 - 100	10	4 x 0.75	-	25°		13 x 18	0.01	350
30.012SL10F	Standard nozzle w. front jet 10 l/min 100 bar	1/8"	20 - 100	11	4 x 0.75	1 x 0.60	25°	0°	13 x 18	0.01	350
30.012SL15	Standard nozzle 15 l/min 100 bar	1/8"	20 - 100	15	4 x 0.90	-	25°		13 x 18	0.01	350
30.012SL15F	Standard nozzle w. front jet 15 l/min 100 bar	1/8"	20 - 100	16	4 x 0.90	1 x 0.60	25°	0°	13 x 18	0.01	350
30.012SL27	Standard nozzle 27 l/min 100 bar	1/8"	20 - 100	27	4 x 1.20	-	25°		13 x 18	0.01	350
30.012SL30F	Standard nozzle w. front jet 30 l/min 100 bar	1/8"	20 - 100	30	4 x 1.10	1 x 1.10	25°	0°	13 x 18	0.01	350

Silverline standard cleaning nozzles 1/4"

Item number	Item name
30.0253SL10	Standard nozzle 10 l/min 100 bar	1/4"	30 - 110	10	3 x 0.85	-	25°	-	18 x 20	0.02	350
30.0253SL10F	Standard nozzle w. front jet 10 l/min 100 bar	1/4"	30 - 110	10	3 x 0.80	1 x 0.80	25°	0°	18 x 20	0.02	350
30.0253SL15	Standard nozzle 15 l/min 100 bar	1/4"	30 - 110	15	3 x 1.10	-	25°	-	18 x 20	0.02	350
30.0253SL15F	Standard nozzle w. front jet 15 l/min 100 bar	1/4"	30 - 110	15	3 x 1.00	1 x 0.80	25°	0°	18 x 20	0.02	350
30.0253SL30	Standard nozzle 30 l/min 100 bar	1/4"	30 - 110	30	3 x 1.55	-	25°	-	18 x 20	0.02	350
30.0253SL30F	Standard nozzle w. front jet 30 l/min 100 bar	1/4"	30 - 110	33	3 x 1.55	1 x 0.80	25°	0°	18 x 20	0.02	350
30.0256SL30	Standard nozzle 30 l/min 100 bar	1/4"	30 - 110	30	6 x 1.10	-	25°	-	18 x 20	0.02	350
30.0256SL30F	Standard nozzle w. front jet 30 l/min 100 bar	1/4"	30 - 110	30	6 x 1.00	1 x 0.80	25°	0°	18 x 20	0.02	350
30.0256SL40	Standard nozzle 40 l/min 100 bar	1/4"	30 - 110	40	6 x 1.20	-	25°	-	18 x 20	0.02	350
30.0256SL40F	Standard nozzle w. front jet 40 l/min 100 bar	1/4"	30 - 110	43	6 x 1.20	1 x 0.80	25°	0°	18 x 20	0.02	350

Silverline standard cleaning nozzles 3/8"

Item number	Item name
30.038SL40	Standard nozzle 40 l/min 100 bar	3/8"	40 - 150	40	6 x 1.30	-	25°	-	25 x 24	0.08	350
30.038SL40F	Standard nozzle w. front jet 40 l/min 100 bar	3/8"	40 - 150	41	6 x 1.30	1 x 0.60	25°	0°	25 x 24	0.06	350
30.038SL60	Standard nozzle 60 l/min 100 bar	3/8"	40 - 150	60	6 x 1.50	-	25°	-	25 x 24	0.06	350
30.038SL60F	Standard nozzle w. front jet 60 l/min 100 bar	3/8"	40 - 150	66	6 x 1.50	1 x 1.1	25°	0°	25 x 24	0.08	350

Silverline standard cleaning nozzles 1/2"

Item number	Item name
30.050SL100	Pipe nozzle 100 l/min 100 bar	1/2"	50 - 200	100	6 x 1.9	-	25°	-	30 x 27	0.06	350
30.050SL100F	Pipe nozzle 100 l/min 100 bar	1/2"	50 - 200	110	6 x 1.9	1 x 1.5	25°	-	30 x 27	0.06	350
30.050SL40	Pipe nozzle 40 l/min 100 bar	1/2"	50 - 200	40	6 x 1.2	-	25°	-	30 x 27	0.06	350
30.050SL40F	Pipe nozzle 40 l/min 100 bar	1/2"	50 - 200	50	6 x 1.2	1 x 1.1	25°	-	30 x 27	0.06	350
30.050SL70	Pipe nozzle 70 l/min 100 bar	1/2"	50 - 200	70	6 x 1.6	-	25°	-	30 x 27	0.06	350
30.050SL70F	Pipe nozzle 70 l/min 100 bar	1/2"	50 - 200	80	6 x 1.6	1 x 1.4	25°	-	30 x 27	0.06	350
35.050SL100	Pipe nozzle 100 l/min 100 bar	1/2"	50 - 200	100	6 x 1.7	4 x 1.3	25°	15°	30 x 27	0.10	350
35.050SL40	Pipe nozzle 40 l/min 100 bar	1/2"	50 - 200	40	6 x 1.1	3 x 1.00	25°	15°	30 x 27	0.10	350
35.050SL70	Pipe nozzle 70 l/min 100 bar	1/2"	50 - 200	70	6 x 1.4	4 x 1.1	25°	15°	30 x 27	0.10	350

Egg nozzle 1/2"

Item number	Item name
30.050EI	Egg nozzle	1/2"	50 - 200	30	6 x M6	1 x M6	25°	-	40 x 50	0.25	ok	350
35.050EI	Egg nozzle with 4 front jets	1/2"	50 - 200	50	6 x M6	4 x M4	25°	15°	40 x 50	0.25	ok	350

Standard cleaning nozzles 3/8" - 1 1/4"

Item number	Item name
30.038	Nozzle for pipe cleaning	3/8"	40 - 150	10	6 x M4	1 x M6	30°	-	25 x 39	0.06	ok	350
30.050	Nozzle for pipe cleaning	1/2"	50 - 200	30	6 x M6	1 x M4	30°	-	30 x 47	0.15	ok	350
30.075	Nozzle for pipe cleaning	3/4"	70 - 250	50	6 x M6	1 x M6	30°	-	38 x 60	0.15	ok	350
30.100	Nozzle for pipe cleaning	1"	150 - 350	120	8 x M8	1 x M8	30°	-	60 x 83	0.20	ok	250
30.100SP20	Egg nozzle 20°	1"	150 - 350	120	8 x M8	1 x M8	20°	-	60 x 83	0.70	ok	250
30.125	Nozzle for pipe cleaning	1 1/4"	200 - 400	200	8 x M8	1 x M8	30°	-	68 x 105	0.90	ok	250
35.050	Nozzle with 4 front jets	1/2"	50 - 200	50	6 x M6	3 x M4, 1 x M6	30°	15°	30 x 47	0.12	ok	350
35.100	Nozzle with 4 front jets	1"	150 - 350	120	8 x M8	4 x M8	30°	15°	60 x 83	0.71	ok	250

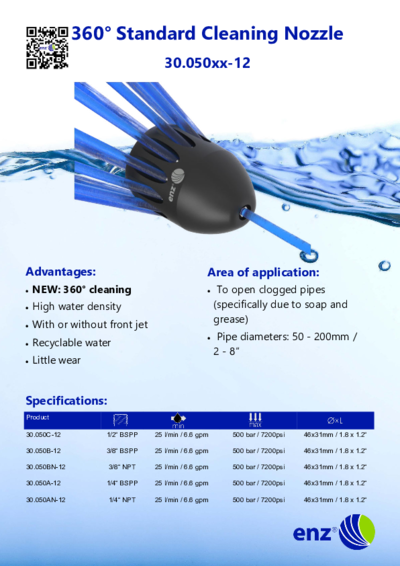

360° Standard cleaning nozzles 1/4" - 1/2"

Item number	Item name
30.050A-12	360° Standard nozzle	1/4"	50-200	25	12	46x31	0.12	ok	500
30.050B-12	360° Standard nozzle	3/8"	50-200	25	12	46x31	0.12	ok	500
30.050C-12	360° Standard nozzle	1/2"	50-200	25	12	46x31	0.12	ok	500
