Scraper 3/4" - 1 1/4"
Scraper 3/4" - 1 1/4"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 50.075GA |
Scraper 75 |
3/4" | 200 - 500 | 100 | 4 x M10, 2 x fan jet M10 | 1 x M10 | 2x 0°, 2x 10°, 2x 20° | 428 x 150 x 108 | 12.90 | ok | 250 | |
| 50.075GB |
Scraper 75 |
1" | 200 - 500 | 100 | 4 x M10, 2 x fan jet M10 | 1 x M10 | 2x 0°, 2x 10°, 2x 20° | 420 x 150 x 108 | 12.80 | ok | 250 | |
| 50.100G |
Scraper 100 |
1" | 300 - 1500 | 150 | 6 x M10, 2 x fan jet M10 | 1 x M10 | 2x 0°, 2x 10°, 4x 20° | 485 x 200 x 130 | 27.64 | ok | 250 | |
| 50.125G |
Scraper 125 |
1 1/4" | 500 - 2500 | 300 | 6 x M10, 2 x fan jet M10 | 1 x M10 | 2x 0°, 2x 10°, 4x 20° | 605 x 250 x 165 | 39.20 | ok | 250 |
Scraper with flat skid 3/4" - 1 1/4"
Scraper with flat skid 3/4" - 1 1/4"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 50.07510GA |
Scraper 75 with flat skid |
3/4" | 200 - 500 | 100 | 4 x M10, 2 x fan jet M10 | 1 x M10 | 2x 0°, 2x 10°, 2x 20° | 428 x 150 x 109 | 16.40 | ok | 250 | |
| 50.07510GB |
Scraper 75 with flat skid |
1" | 200 - 500 | 100 | 4 x M10, 2 x fan jet M10 | 1 x M10 | 2x 0°, 2x 10°, 2x 20° | 420 x 150 x 109 | 16.50 | ok | 250 |
Scraper 1 1/2"
Scraper 1 1/2"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 50.150 |
Scraper 150 |
1 1/2" | 500 - 4500 | 400 | 8 x M10, 2 x fan jet M10 | 1 x M10 | 4x 0°, 2x 10°, 2x 15°, 2x 20° | 655 x 300 x 170 | 51.00 | ok | 250 |

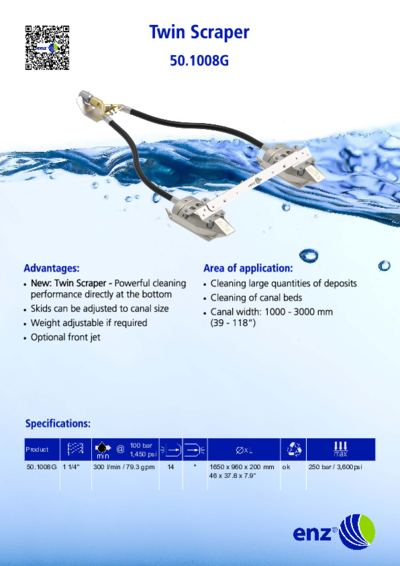

Twin Scraper 1 1/4"
Twin Scraper 1 1/4"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 50.1008G |
Twin Scraper 100 |
1 1/4" | 1000 - 3000 | 300 | 12 x M10, 2 x fan jet M10 | * | 1650 x 960 x 200 | 69.00 | ok | 250 |
Scraper with spray bar 1"
Scraper with spray bar 1"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 50.1006G |
Scraper with spray bar |
1" | 600 - 1500 | 250 | 4x fan jet M10 | 6 x M10, 2 x fan jet M10 | 1 x M10 | 506 x 500 x 360 | 37.80 | ok | 250 |
Accessory and wearing parts Scraper
Accessory and wearing parts Scraper
| Item number | Item name |
|
|
|
|||
| 0050.07510 |
Flat skid for Scraper 75
|
Flat skid for Scraper 75 |
5.90 | ||||
| 0050.0753G |
Skid for Scraper 75
|
Skid for Scraper 75 |
1.17 | ||||
| 0050.0755G |
Roll bar for Scraper 75
|
Roll bar for Scraper 75 |
300 - 500 | 230.5 x 220 x 196 | 2.50 | ||
| 0050.10010G |
Flat skid for Scraper 100
|
Flat skid for Scraper 100 |
6.50 | ||||
| 0050.1003G |
Skid for Scraper 100
|
Skid for Scraper 100 |
2.70 | ||||
| 0050.1005G |
Roll bar for Scraper 100
|
Roll bar for Scraper 100 |
400 - 1500 | 297.6 x 273 x 230.5 | 3.12 | ||
| 0050.12510G |
Flat skid for Scraper 125
|
Flat skid for Scraper 125 |
13.60 | ||||
| 0050.1253G |
Skid for Scraper 125
|
Skid for Scraper 125 |
4.40 | ||||
| 0050.1255G |
Roll bar for Scraper 125
|
Roll bar for Scraper 125 |
500 - 2500 | 364 x 320 x 236 | 3.68 | ||
| 0050.15032 |
Skid for Scraper 150
|
Skid for Scraper 150 |
5.26 | ||||
| 50.10012G |
Enlargement plate with screws for Scraper 100
|
Enlargement plate with screws for Scraper 100 |
6.60 | ||||
| 50.10060G |
Spray bar incl. guide rollers for Scraper 100
|
Spray bar incl. guide rollers for Scraper 100 |
15.00 |
Accesory and wearing parts Twin Scraper
