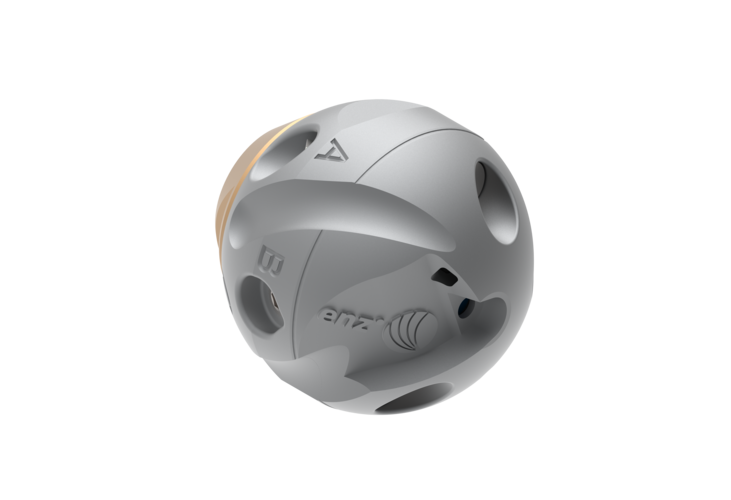

Cutting balls

The enz^® cutting ball operates without impact but features an optional vibration function (not CB50).
The cutting ball is equipped with a carbide frontal cutter, making it suitable for pipes with a blockage level of over 50%.
The lateral cutting edges are self-sharpening and retain their sharpness throughout their entire service life.
The application range of the cutting ball is highly versatile. Thanks to its spherical shape, it easily navigates bends without damaging the pipe. The proven enz^® counter-rotation principle ensures low rotational speeds and contributes significantly to durability and long service life.

Applications
• For removing root intrusions, mineral deposits, and limescale

enz® Cutting ball CB50

enz® CB90 Cutting Ball - Fräskugel 420.090A

enz® CB90 Cutting Ball - Fräskugel 420.090AS

CB50 1/4" - 1/2"

Item number	Item name
420.050A	Cutting ball CB50	BSPP 1/4"	55 -100	25	4 x M6	-	49 x 62	0.40	200
420.050B	Cutting ball CB50	BSPP 3/8"	55 - 100	25	4 x M6	-	49 x 62	0.80	200
420.050BS	Cutting ball CB50 with thrust	BSPP 3/8"	55 - 100	55	4 x M6	4x Ø 1.3mm	49 x 62	0.40	200
420.050C	Cutting ball CB50	BSPP 1/2"	55 - 100	25	4 x M6	-	49 x 58	0.40	200
420.050CS	Cutting ball CB50 with thrust	BSPP 1/2"	55 -100	55	4 x M6	4x Ø 1.3mm	49 x 58	1.20	200

CB70 1/2"

Item number	Item name
420.070A	Cutting ball CB70	1/2"	80 - 120	50	6 x M6	-	68 x 92	1.94	ok	200
420.070AS	Cutting ball CB70 with thrust	1/2"	80 - 120	80	6 x M6	3 x M4	68 x 92	2.20	ok	200

CB70 1/2" CC

Item number	Item name
425.070A	Cutting ball CB70 CC	1/2"	80 - 120	60	6 x M6	-	68 x 92	2.20	ok	200
425.070AS	Cutting ball CB70 CC with thrust	1/2"	80 - 120	80	6 x M6	3 x M4	68 x 92	2.20	ok	200

CB90 1/2"

Item number	Item name
420.090A	Cutting ball CB90	1/2"	100 - 150	60	6 x M6	-	89 x 96	3.80	ok	200
420.090AS	Cutting ball CB90 with thrust	1/2"	100 - 150	80	6 x M6	3 x M4	89 x 96	3.50	ok	200

CB90 1/2" CC

Item number	Item name
425.090A	Cutting ball CB90 CC	1/2"	100 - 150	60	6 x M6	-	*	89 x 96	3.20	ok	200
425.090AS	Cutting ball CB90 CC with thrust	1/2"	100 - 150	80	6 x M6	3 x M4	*	89 x 96	2.90	ok	200

Accessory cutting balls

Item number		Item name
09.420030	Box for CB30	Box for CB30	120 x 116 x 40	0.10
420.0306	Double open-ended spanner 15 × 16 mm for CB30	Double open-ended spanner 15 × 16 mm for CB30		0.04
00420.0702	Locking pin for cutting ball Ø70	Locking pin for cutting ball Ø70		0.02
00420.0902	Locking pin	Locking pin		0.02
857.1230	Cylinder pin Ø 12x30	Cylinder pin Ø 12x30		0.05
