Wire rope and chain scrapers

The Chain scraper enz^® is an apparatus which has many uses and is simple in handling and maintenance. Several different pipe diameters can be cleaned with the same tool. Layers of mineral deposits and concrete residues are efficiently removed.

Applications

As preliminary operation before renovation with inliners, coatings or by injections
Complete root removal
Removal of incrustations and deposits
Removal of concrete residues in newly installed sewage pipelines prior to inspection

enz® - Chain scraper - roots

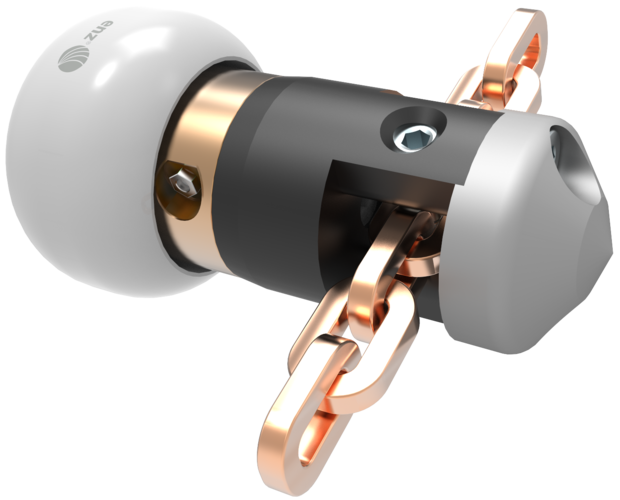

Wire rope and chain scrapers 10.028 1/4" NPT

	Item number	Item name
	10.028N	Chain flail 1.5 - 4"	1/4" NPT	2 - 4	5	3 x M4	3 x M4	1.6 / 1.1 x 3.1	2.0	5,000

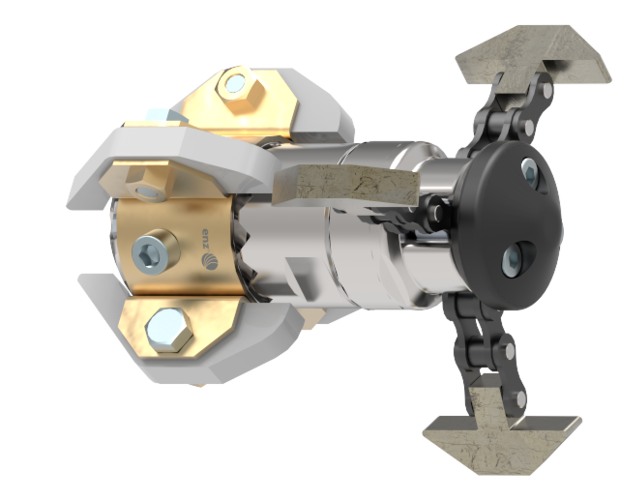

Wire rope and chain scrapers 10.060TR 3/8" NPT - 1/2"

	Item number	Item name
	10.060ATR-US	chain flail 2.36 - 6"	3/8" NPT	2.4 - 8	8	2 x M6	4 x M6	1.6 x 4.4	2.10	ok	5,000

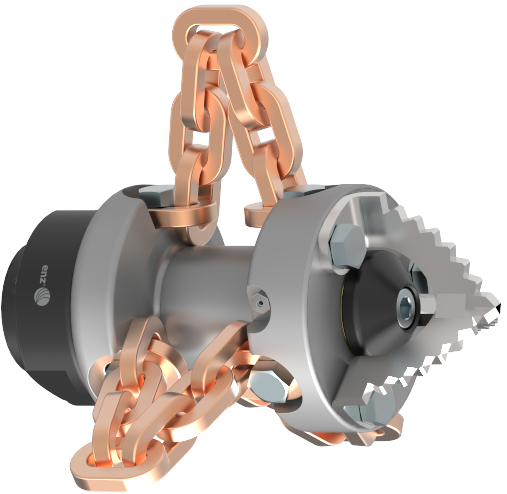

Wire rope and chain scrapers 10.061A 1/2"

	Item number	Item name
	10.061A	Rotating chain Scraper 2.4"	1/2"	3 - 7.8	16	3 x M6	3 x M6	2.4 x 5.3	3.09	3,600

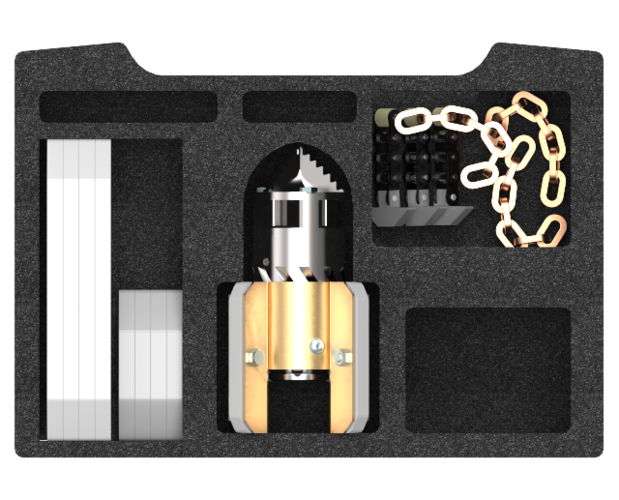

Wire rope and chain scrapers sets

Item number		Item name
09.001028	Tool case small for 10.028N	Tool case small for 10.028N	1/4"	1.32
10.060ATR-GS	chain flail 2.36 - 6"	chain flail 2.36 - 6"	3/8"	5.07

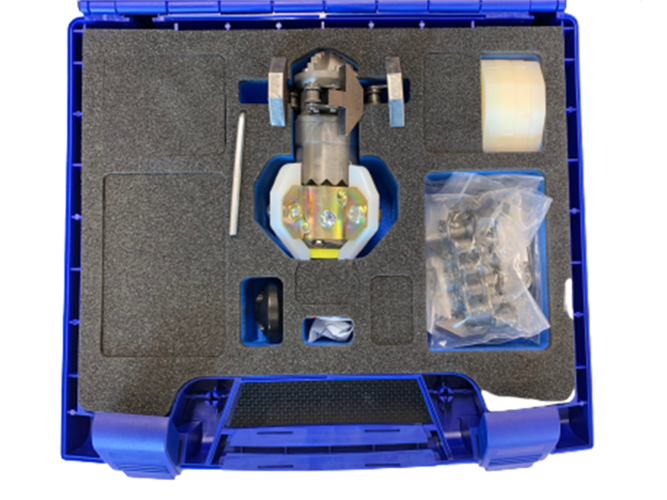

10.060ATR-SET-US	chain flail 2.36 - 6"	chain flail 2.36 - 6"	3/8"	3.8
10.060BTR-GS	chain flail 2.36 - 6"	chain flail 2.36 - 6"	1/2"	5.07
10.060BTR-SET-CH	chain flail 2.36 - 6"	chain flail 2.36 - 6"	1/2"	6.4

Accessory 10.028

10.028

	Pipe diameter	Ø 2 "	Ø 3 "	Ø 4 "	Ø per yard
Pin bolt chain Ø 1.9 inch	Pin bolt chain Ø 1.9 inch	0010.028050G	0010.028075G	0010.028100G	0010.028G
Chaîne à maillons Ø 2 inch	Chaîne à maillons Ø 2 inch	0010.028050K	0010.028075K	0010.028100K	0010.028K
Cover with cutter	Cover with cutter	0010.0285M	0010.0285M	0010.0285M
Plastic guide	Plastic guide	0010.0286	0010.0286	0010.0286

Accessory 10.060

10.060ATR

	Pipe diameter	Ø 2 "	Ø 3 "	Ø 4 "	Ø 5 "	Ø 6 "	Ø 8 "	per yard
Set Pin bolt chain with plates Ø 2.4 inch	Set Pin bolt chain with plates Ø 2.4 inch	0010.060060G	0010.060075G	0010.060100G	0010.060125G	0010.060150G	0010.060200G	11.G
Set link chains Ø 2.4 inch	Set link chains Ø 2.4 inch	0010.040060K	0010.040075K	0010.040100K	0010.040125K	0010.040150K	0010.040200K	0010.040K
Cover with cutter and screws	Cover with cutter and screws	0010.0605TRM	0010.0605TRM	0010.0605TRM	0010.0605TRM	0010.0605TRM	0010.0605TRM
Cage for TurboJet 60	Cage for TurboJet 60			0010.0607TR	0010.0607TR	0010.0607TR	0010.0607TR
Skid Turbojet 60	Skid Turbojet 60			0010.060710TR	0010.060712TR	0010.060715TR	0010.060720TR
