Turbopuls vibration nozzles

The underlying technology of the enz^® Turbopuls vibration nozzle is an off-center rotor, which generates very fast vibrations. The turbine wheel drive enables all Turbopuls nozzles to be operated with recycled water. The vibrations cause deposits to loosen or break up into fragments. When Turbopuls nozzles are used, a cutter is usually not required.
Important: Turbopuls nozzles develop strong impacts and vibrations. This can possibly cause damage in some sort of pipes (such as clay pipes, thin-walled plastic pipes, fragile concrete pipes, or PVC pipes).

Applications
Turbopuls nozzles are designed to remove very hard deposits in plastic, steel, or concrete pipes.

Turbopuls 120 - Removing limestone deposits in a sewer pipe

Turbopuls 60 1/2"

	Item number	Item name
	410.060A	Turbopuls 2.5"	1/2"	4 - 8	16	1 x M6	3 x M8	2.5 x 7.1	5.29	ok	2,900

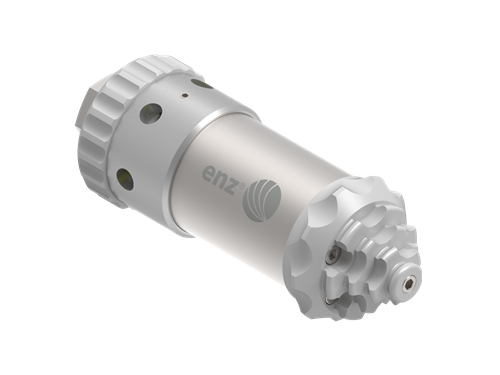

Turbopuls 80 1/2"

	Item number	Item name
	410.080A	Turbopuls 3.1"	1/2"	6 - 12	21	1 x M6	3 x M8		3.1 x 8.3	9.48	ok	2,900

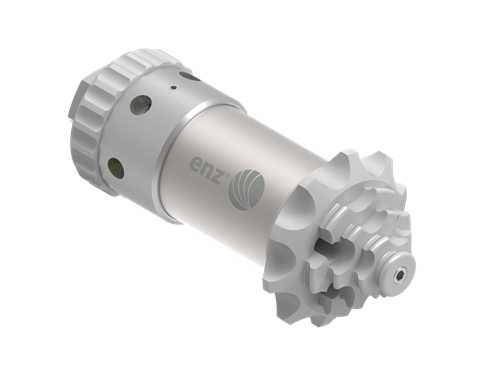

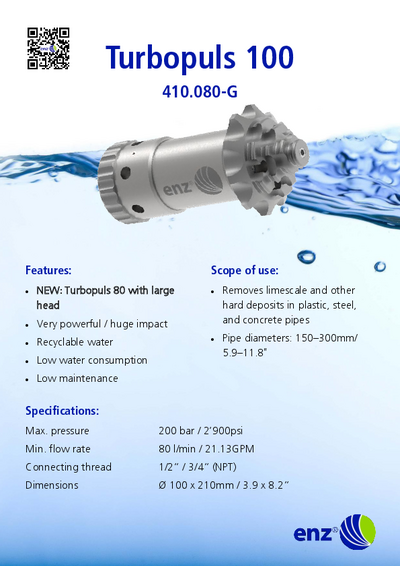

Turbopuls 100 1/2"

	Item number	Item name
	410.080A-G	Turbopuls with big head 3.9"	1/2"	6 - 12	21	1 x M6	3 x M8	3.9 x 8.3	9.48	ok	2,900

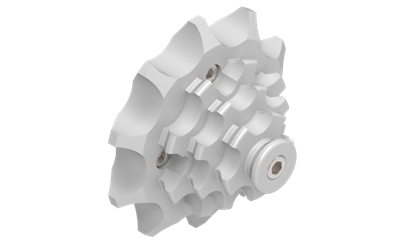

Accessory and wearing parts Turbopuls

Item number		Item name
258.10	Pulling eye for Turbopuls 2.5" and 3.1"	Pulling eye for Turbopuls 2.5" and 3.1"
00410.08010	Pointed center for Turbopuls 2.5" and 3.1"	Pointed center for Turbopuls 2.5" and 3.1"	0.6 x 2.4	0.15
410.0805	Impact head standard	Impact head standard	3.1 x 2.1	2.5
410.08052	Impact head 3.9" with screws	Impact head 3.9" with screws	4.1 x 2.1	2.5
