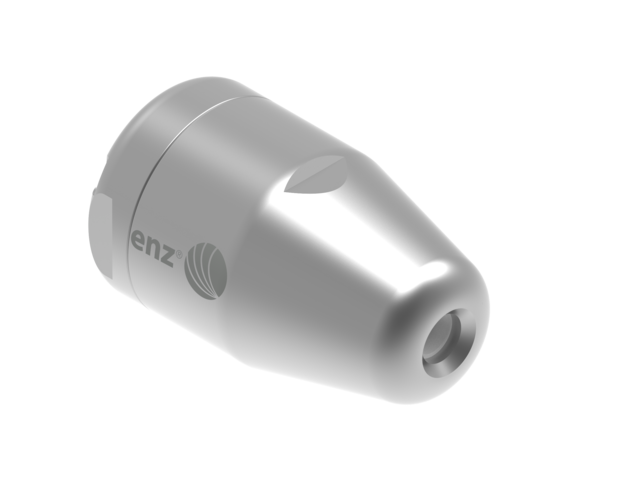

Rotodrill 1/8" NPT - 1/4" NPT
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 36.025ANS085-070 |
Rotodrill |
1/8" NPT | 1.6 - 4 | 3.2 | 3 x 0.85 | 1 x 0.70 | 20° | 12° | 0.9 x 1.5 | 0.15 | 5,000 | |
| 36.025BNS100-090 |
Rotodrill |
1/4" NPT | 1.6 - 4 | 4.2 | 3 x 1.0 | 1 x 0.9 | 20° | 12° | 0.9 x 1.5 | 0.15 | 5,000 | |
| 36.025BNS130-090 |
Rotodrill |
1/4" NPT | 1.6 - 4 | 6.6 | 3 x 1.3 | 1 x 0.90 | 20° | 12° | 0.9 x 1.5 | 0.15 | 5,000 |
Rotodrill 1/8" NPT - 1/4" NPT
Reverse Rotodrill 1/4" NPT - 3/8" NPT
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 36.025NiREV |
Reverse Rotodrill |
1/4" NPT | 3 - 6 | 1.5 | 1 x 0.90 - 1.80 | - | 25° | - | 2.7 x 4.1 | 0.57 | 5,000 | |
| 36.038NiREV |
Reverse Rotodrill |
3/8" NPT | 3 - 6 | 1.5 | 1 x 0.90 - 1.80 | - | 25° | - | 2.7 x 4.1 | 0.57 | 5,000 |
Reverse Rotodrill 1/4" NPT - 3/8" NPT
Rotodrill 3/8" NPT - 1/2"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
|
| 36.035AN |
Rotodrill |
3/8" NPT | 2 - 6 | 9.2 | 6 x M4 | 1 x 1.2-1.8 | 25° | 11° | 1.4 x 2.6 | 0.4 | 5,000 | |
| 36.038N |
Rotodrill |
3/8" NPT | 2 - 6 | 6.6 | 6 x M4 | 1 x 0.90 - 1.80 | 15° | 7° | 1.3 x 2.6 | 0.66 | 5,000 | |
| 36.045 |
Rotodrill |
3/4" | 2.8 - 8 | 19.8 | 6 x M6 | 1 x 1.8 | 35° | 9° | 1.7 x 3.2 | 1.020 | 5,000 | |

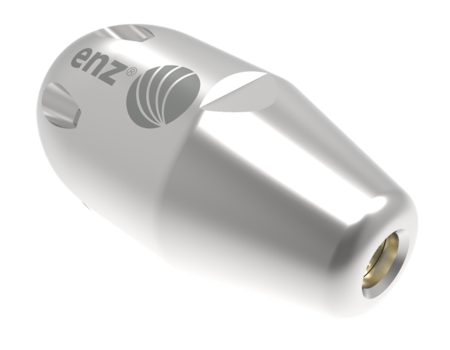

| 36.050 |
Rotodrill |
1/2" | 2 - 6 | 6.6 | 6 x M4 | 1 x 0.90 - 1.80 | 15° | 7° | 1.3 x 2.4 | 0.44 | 5,000 |
Rotodrill 3/8" NPT - 1/2"
Wearing parts Rotodrill
| Item number | Item name |
|
|
|||
| 0036.0354-120 |
Pilot nozzle 1.2 mm for Rotodrill 36.035
|
Pilot nozzle 1.2 mm for Rotodrill 36.035 |
0.004 | |||
| 0036.0354-150 |
Pilot nozzle 1.5 mm for Rotodrill 36.035
|
Pilot nozzle 1.5 mm for Rotodrill 36.035 |
0.004 | |||
| 0036.0354-180 |
Pilot nozzle 1.8 mm for Rotodrill 36.035
|
Pilot nozzle 1.8 mm for Rotodrill 36.035 |
0.004 | |||
| 66.21040-020 |
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV
|
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV |
Ø 0.90 | 0.06 | ||
| 66.21040-040 |
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV
|
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV |
Ø 1.20 | 0.06 | ||
| 66.21040-060 |
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV
|
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV |
Ø 1.50 | 0.06 | ||
| 66.21040-080 |
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV
|
Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV |
Ø 1.80 | 0.06 | ||
| 66.36025-070 |
Re-build kit for Rotodrill 36.025xx
|
Re-build kit for Rotodrill 36.025xx |
Ø 0.70 | 0.022 | ||

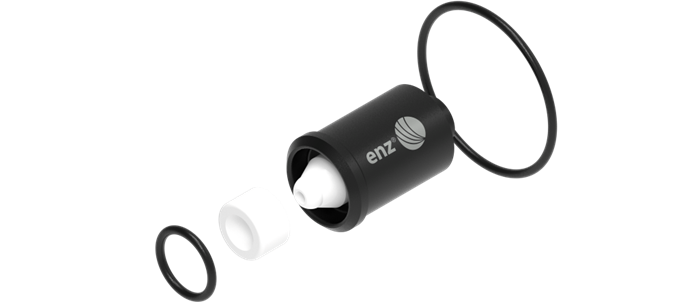

| 66.36025-090 |
Repair Set for Rotodrill 36.025xN
|
Repair Set for Rotodrill 36.025xN |
Ø 0.90 | 0.022 | ||
| 66.36025-150 |
Repair Set for Reverse Rotodrill 36.025xREV-150 / 36.025xNiREV-150
|
Repair Set for Reverse Rotodrill 36.025xREV-150 / 36.025xNiREV-150 |
Ø 1.50 | 0.022 | ||
| 66.36035-120 |
Repair Set for Rotodrill 36.035
|
Repair Set for Rotodrill 36.035 |
0.7 | |||
| 66.36035-150 |
Repair Set for Rotodrill 36.035
|
Repair Set for Rotodrill 36.035 |
0.7 | |||
| 66.36035-180 |
Repair Set for Rotodrill 36.035
|
Repair Set for Rotodrill 36.035 |
0.7 |
Wearing parts Rotodrill
Maintenance tools & accessories Rotodrill
| Item number | Item name |
|
|
|||

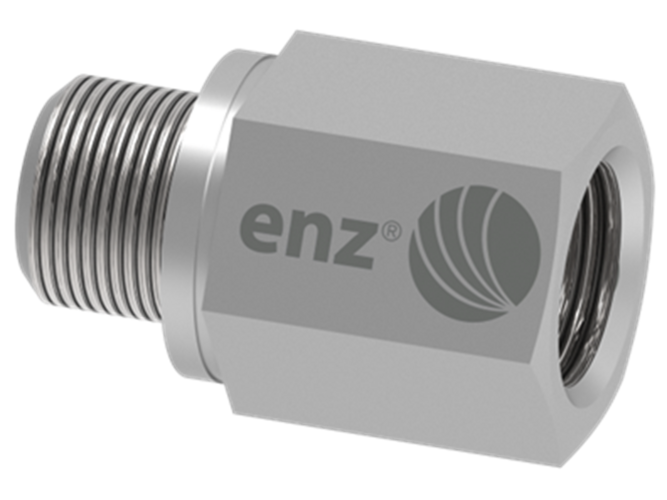

| 19.M025F025NFIX |
Adapter G 1/4" - 1/4" NPT
|
Adapter G 1/4" - 1/4" NPT |
G 1/4" - 1/4" NPT | 0.11 | ||
| 19.M025MST-245 |
Quick connect adapter
|
Quick connect adapter |
M 1/4 - ST-245 | 0.03 | ||
| L.36.503 |
Assembly aid for O-ring for Rotodrill
|
Assembly aid for O-ring for Rotodrill |
0.07 | |||

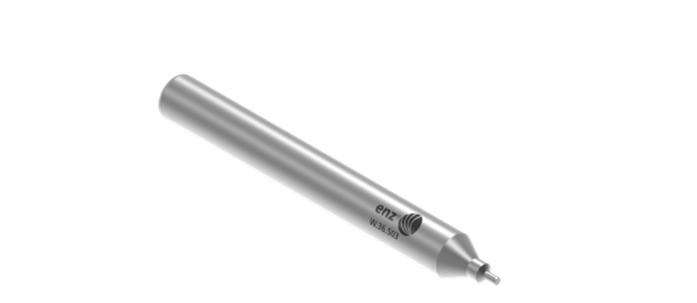

| W.36.503 |
Mounting aid for ceramic for Rotodrill
|
Mounting aid for ceramic for Rotodrill |
0.09 |
Maintenance tools & accessories Rotodrill
