KBR nozzles 1/8" NPT drilled
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 04.012B05N |
Rotojet 0.5" |
1/8" NPT | 0.5 - 1 | 1.6 | 4 x 0.5 | - | - | 0.5 x 1.0 | 0.03 | 5,000 | |
| 04.012B06N |
Rotojet 0.5" |
1/8" NPT | 0.5 - 1 | 1.8 | 4 x 0.6 | - | - | 0.5 x 1.0 | 0.03 | 5,000 | |
| 04.012B07N |
Rotojet 0.5" |
1/8" NPT | 0.5 - 1 | 2.4 | 4 x 0.7 | - | - | 0.5 x 1.0 | 0.03 | 5,000 | |
| 04.012B09N |
Rotojet 0.5" |
1/8" NPT | 0.5 - 1 | 3.2 | 4 x 0.9 | - | - | 0.5 x 1.0 | 0.03 | 5,000 | |
| 04.012B12N |
Rotojet 0.5" |
1/8" NPT | 0.5 - 1 | 4.2 | 4 x 1.2 | - | - | 0.5 x 1.0 | 0.03 | 5,000 | |
| 04.016A07N |
Rotojet 0.6" |
1/8" NPT | 0.7 - 2.4 | 3 | 4 x 0.7 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016A08N |
Rotojet 0.6" |
1/8" NPT | 0.7 - 2.4 | 4 | 4 x 0.80 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016A09N |
Rotojet 0.6" |
1/8" NPT | 0.7 - 2.4 | 4.5 | 4 x 0.90 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016A10N |
Rotojet 0.6" |
1/8" NPT | 0.7 - 2.4 | 5.5 | 4 x 1.00 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016A11N |
Rotojet 0.6" |
1/8" NPT | 0.7 - 2.4 | 7 | 4 x 1.10 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016AS0708N |
Rotojet 0.6" with thrust |
1/8" NPT | 0.7 - 2.4 | 5.5 | 4 x 0.70 | 3 x 0.80 | * | 0.6 x 1.2 | 0.1 | 5,000 | |
| 04.016AS0808N |
Rotojet 0.6"with thrust |
1/8" NPT | 0.7 - 2.4 | 6.3 | 4 x 0.80 | 3 x 0.80 | * | 0.6 x 1.2 | 0.1 | 5,000 |
KBR nozzles 1/8" NPT drilled
KBR nozzles 1/4" NPT drilled
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 04.016B04N |
Rotojet 16mm |
1/4" NPT | 0.7 - 2.4 | 1.5 | 4 x 0.40 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016B07N |
Rotojet 16mm |
1/4" NPT | 0.7 - 2.4 | 3 | 4 x 0.70 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016B08N |
Rotojet 16mm |
1/4" NPT | 0.7 - 2.4 | 3.5 | 4 x 0.80 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016B09N |
Rotojet 0.6" |
1/4" NPT | 0.7 - 2.4 | 4.5 | 4 x 0.90 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016B10N |
Rotojet 0.6" |
1/4" NPT | 0.7 - 2.4 | 5.5 | 4 x 1.00 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016B11N |
Rotojet 16mm |
1/4" NPT | 0.7 - 2.4 | 6.5 | 4 x 1.10 | - | * | 0.6 x 1.2 | 0.07 | 5,000 | |
| 04.016BS0708N |
Rotojet 0.6" with thrust |
1/4" NPT | 0.7 - 2.4 | 5.5 | 4 x 0.70 | 3 x 0.80 | * | 0.6 x 1.2 | 0.1 | 5,000 | |
| 04.016BS0808N |
Rotojet 0.6" with thrust |
1/4" NPT | 0.7 - 2.4 | 5.5 | 4 x 0.80 | 3 x 0.80 | * | 0.6 x 1.2 | 0.1 | 5,000 | |

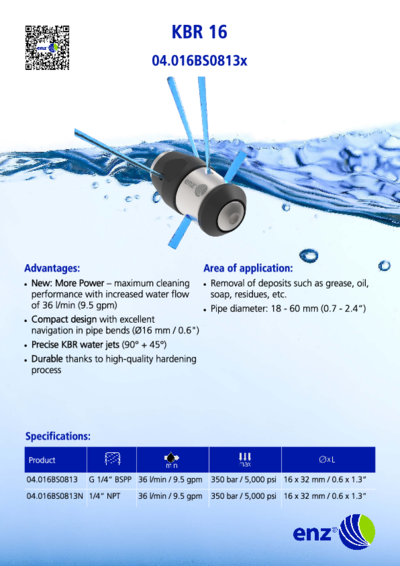

| 04.016BS0813N |
Rotojet 0.6" with thrust |
1/4" NPT | 0.7 - 2.4 | 9.5 | 4 x 0.8 | 3 x 1.3 | * | 0.6 x 1.3 | 0.1 | 5,000 |
KBR nozzles 1/4" NPT drilled
KBR nozzles 1/4" NPT
KBR nozzles 3/8" NPT
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 04.028BN |
Rotojet |
3/8" NPT | 1 - 4 | 3 | 4 x M4 | - | * | 1.1 x 2.2 | 0.44 | 5,000 |
KBR nozzles 3/8" NPT
KBR nozzles 1/2"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 04.040A |
Rotojet 1.6" |
1/2" | 3 - 6 | 5 | 4 x M6 | - | * | 1.6 x 3.2 | 1.2 | 5,000 | |
| 04.040AS |
Rotojet with thrust jets 1.6" |
1/2" | 3 - 6 | 11 | 4 x M6 | 3 x M6 | * | 1.6 x 3.2 | 1.2 | 5,000 | |
| 04.050A |
Rotojet 2" |
1/2" | 4 - 8 | 18 | 4 x M6 | - | * | 2.0 x 3.9 | 2.4 | 5,000 | |
| 04.050AS |
Rotojet with thrust jets 2" |
1/2" | 4 - 8 | 18 | 4 x M6 | 3 x M6 | * | 2.0 x 3.9 | 2.4 | 5,000 |
KBR nozzles 1/2"
