JetCam® 40 Pro

Cleaning, inspecting, maneuvering, and documenting in one operation!

The JetCam^® 40 Pro camera nozzle offers both optimal cleaning performance and a live image. This makes it particularly suitable for the simultaneous cleaning and inspection of public and private pipe systems. It can clean pipes from 50 – 150 mm (2 - 6"). The JetCam^® camera nozzle can be guided through multiple bends (including multiple 90° bends). On top of this, its optional front jet nozzle can clear blockages, and the camera nozzle can be aimed with precision at any time via a 512 Hz locating signal (not included with basic models).

Scope of supply:
- Stainless steel hose reel with integrated control unit
- Accessory bag with complete accessory set
- JetCam^® camera head
- 197 ft. JetCam^® HP hose (1/2” or 3/8” – see product description)
- Steering piece and nozzles (6-jet standard nozzle or interchangeable nozzle set – see product description)
- 10.1" M-300 monitor (M-200 for basic models) with 1400-nit sunlight-readable display and IP67/IP54-rated dust and water protection
- Built-in 512 Hz sonde for precise location tracking (not included with basic models)
- Built-in DVR video recording (not included with basic models)

JetCam Race

JetCam® At the RO KA TECH Trade Fair

JetCam® Trailer - EN

JetCam® Costumer Feedback

JetCam® 40 Pro - English

JetCam® New Camera Head

Unclogging And Cleaning With JetCam®

JetCam - Maneuver around corners

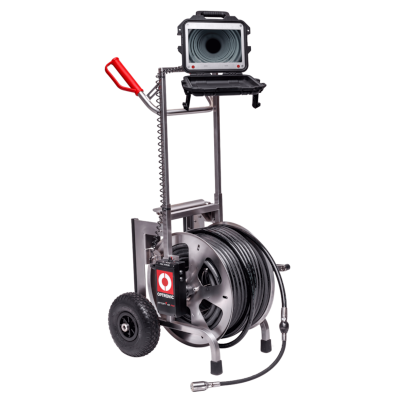

JetCam® 40 Pro, Basic

Item number	Item name
220.01.038S-L	JetCam® 40 Pro, 3/8" 197 ft., standard nozzle, basic	1/2"	2 - 6	21.7 x 22.6 x 33.5	103.6	2,300
220.01.050S-L	JetCam® 40 Pro, 1/2" 197 ft., standard nozzle, basic	1/2"	2 - 6	21.7 x 22.6 x 33.5	112.44	2,300
220.01.050WDS-L	JetCam® 40 Pro, 1/2" 197 ft., nozzle set, basic	1/2"	2 - 6	21.7 x 22.6 x 33.5	121.3	2,300

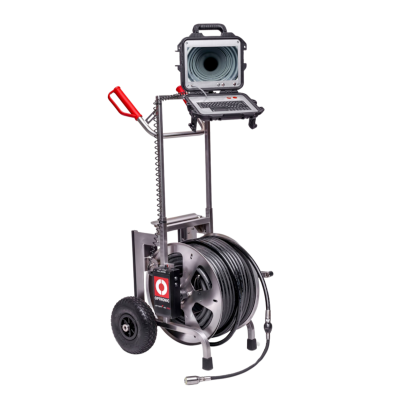

JetCam® 40 Pro

Item number	Item name
220.01.038S	JetCam® 40 Pro, 3/8" 197 ft., standard nozzle	1/2"	2 - 6	21.7 x 22.6 x 33.5	105.82	2,300
220.01.050S	JetCam® 40 Pro, 1/2" 197 ft., standard nozzle	1/2"	2 - 6	21.7 x 22.6 x 33.5	114.64	2,300
220.01.050WDS	JetCam® 40 Pro, 1/2" 197 ft., nozzle set	1/2"	2 - 6	21.7 x 22.6 x 33.5	123.46	2,300
