HRH nozzles

The semi-radial rotating enz^® nozzles with their 4 retroacting cutting-jets at an angle of approx. 45° cause simultaneously the cleaning procedure and the thrust for the forward move of the tool i.e. the jets combine rotation and thrust in one function resulting in a low water consumption. With sufficient water capacity, optional thrust jets can facilitate upward cleaning.

Applications

Cleaning of pipes before CTV inspections
To remove mineral deposits in pipes
To remove roots up to Ø 5 mm (Ø 0.2")

HRH nozzles 1/8" NPT - 1/4" NPT drilled

Item number	Item name
02.016A08N	Rotojet	1/8" NPT	1 - 2	3	2 x 0.8, 2 x 0.7	-	*	0.6 x 1.2	0.07	5,000
02.016A13N	Rotojet	1/8" NPT	1 - 2	4	2 x 1.3, 2 x 1.1	-	*	0.6 x 1.2	0.07	5,000

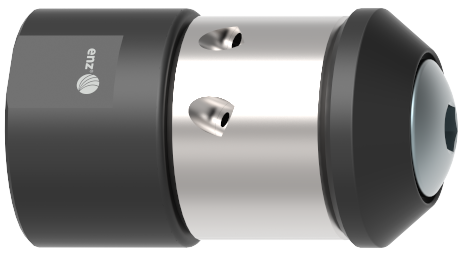

02.016B08N	Rotojet	1/4" NPT	1 - 2	3	2 x 0.8, 2 x 0.7	-	*	0.6 x 1.2	0.07	5,000
02.016B13N	Rotojet	1/4" NPT	1 - 2	4	2 x 1.3, 2 x 1.1	-	*	0.6 x 1.2	0.07	5,000

HRH nozzles 1/4" NPT - 1/2"

Item number	Item name
02.022BN	Rotojet 0.9"	1/4" NPT	1 - 4	3	4 x M4	-	*	0.9 x 1.6	0.2	5,000
02.028AN	Rotojet	1/4" NPT	2 - 4	2	4 x M4	-	*	1.1 x 2.2	0.45	5,000

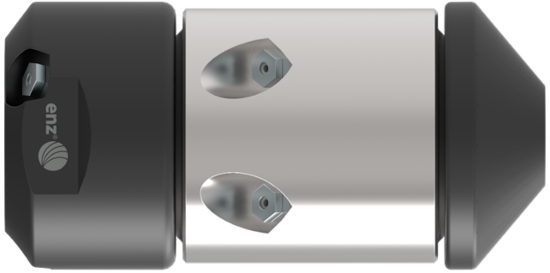

02.028ASN	Rotojet	1/4" NPT	2 - 4	3	4 x M4	3 x M4	*	1.1 x 2.2	0.45	5,000
02.028BN	Rotojet HRH 1.1"	3/8" NPT	2 - 4	2	4 x M4	-	*	1.1 x 2.2	0.45	5,000
02.040A	Rotojet 1.6"	1/2"	3 - 6	4	4 x M6	-	*	1.6 x 3.2	1.24	5,000
02.040AS	Rotojet 1.6" with thrust jets	1/2"	3 - 6	9	4 x M6	3 x M6	*	1.6 x 3.2	1.24	5,000
02.050A	Rotojet 2"	1/2"	4 - 8	9	4 x M6	-	*	2.0 x 3.9	2.43	5,000
02.050AS	Rotojet 2" with thrust jets	1/2"	4 - 8	9	4 x M6	3 x M6	*	2.0 x 3.9	2.43	5,000
