Grenade-bombs

This enz^® jet nozzle is made of wear-resistant hardened steel. The "grenade" and the "bomb" are joined in the same nozzles. Different jet angles perform together strong traction and effective cleaning. The high efficiency is reached by appropriate water guidance.

Applications

• For removal of loose rubble stone, gravel and soft deposits
• For a previous cleaning before the use of chain flail head or cutter

Grenade-bombs 1/4" NPT

Item number	Item name

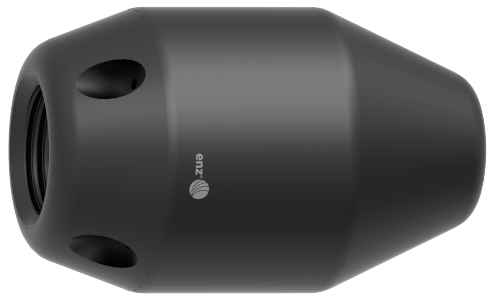

40.025N-10	Grenade-bomb	1/4" NPT	1 - 4	3	4 x 0.70	1 x M4	20°	1.0 x 1.6	0.22	7,200
40.025N-30	Grenade-bomb	1/4" NPT	1 - 4	8	4 x 1.30	1 x M4	20°	1.0 x 1.6	0.22	7,200
40.025N-40	Grenade-bomb	1/4" NPT	1 - 4	10	4 x 1.45	1 x M4	20°	1.0 x 1.6	0.22	7,200

Grenade-bombs 3/8" NPT - 1/2"

Item number	Item name
40.038N	Grenade-bomb 1.15 lbs	3/8" NPT	2 - 4	3	6 x M6	1 x M6	25°	1.5 x 3.2	1.15	ok	7,200

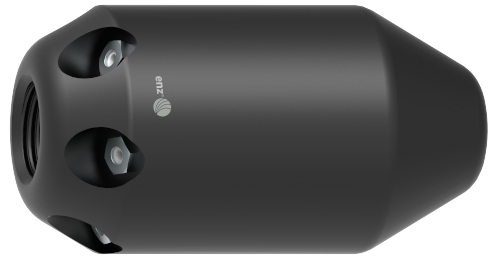

40.050	Grenade-bomb 1.89 lbs	1/2"	2 - 6	8	6 x M8	1 x M8	25°	1.9 x 3.5	1.89	ok	7,200
40.075A	Grenade-bomb 3.4 lbs	1/2"	3 - 8	13	8 x M8	1 x M8	10° + 30°	2.3 x 4.6	3.4	ok	7,200
