Chisel point nozzles

Concentrated powerful advance by means of 4 front jet nozzles. The sharp edges cut, break and penetrate through every kind of blockage. Made of wear-resistant, hardened steel. All nozzles from art. 60.038 onward are provided with ceramic inserts. Because of this, the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer.

Applications

Penetrating of completely clogged pipes
Opening of interlaced roots
Opening of frozen pipelines

enz® - Pointed nozzle - sludge & dirt

Silverline chisel point nozzles 1/8" NPT - 1/2"

Item number	Item name
60.012NSL15	Pointed nozzle 4 Gsm 1400 Psi	1/8" NPT	1 - 2	4	3 x 0.95	4 x 0.50	25°	15°	0.6 x 1.0	0.04	5,000
60.025NSL15	Pointed nozzle 4 Gsm 1400 Psi	1/4" NPT	1 - 2	4	3 x 0.90	4 x 0.60	25°	15°	0.8 x 1.3	0.06	5,000
60.050SL100	Pointed nozzle 26.5 Gsm 1400 Psi	1/2"	2 - 6	26	3 x 2.40	4 x 1.10	25°	15°	1.3 x 2.2	0.31	5,000

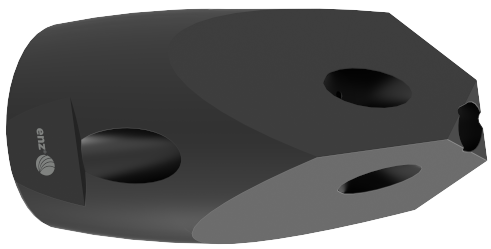

60.050SL40	Pointed nozzle 10.5 Gsm 1400 Psi	1/2"	2 - 6	11	3 x 1.50	4 x 0.80	25°	15°	1.3 x 2.2	0.31	5,000
60.050SL70	Pointed nozzle 18.5 Gsm 1400 Psi	1/2"	2 - 6	18	3 x1.80	4 x 0.90	25°	15°	1.3 x 2.2	0.31	5,000

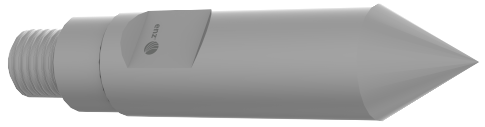

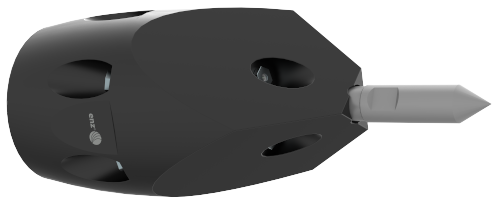

Chisel point nozzles with centre spire 3/8" NPT - 1/2"

Item number	Item name
60.038N	Chisel point nozzle	3/8" NPT	1.1 - 3.9	7.9	3 x M4	4 x M4	20°	15°	1 x 1.7	0.18	ok	5,000

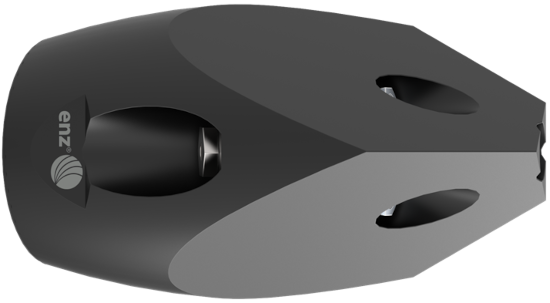

60.050	Chisel point nozzle	1/2"	2 - 6	13	3 x M6	4 x M4	25°	15°	1.3 x 2.2	0.07	ok	5,000
