Bulldog 30 - 37

The enz^® Bulldog® rotating nozzle has been designed for operation with recycling water and fresh water. The cleverly built sliding bearing allows the use of every kind of recycled water. An integrated oil-free braking system results in a low wear and tear operation and in controlled numbers of rotation. In this way a most efficient and economic pipe cleaning is achieved. The bore of the nozzle insert determines the admissible size of the dirt particles up to a maximum Ø 1mm.

Characteristics

Easy to handle
The tool is practically maintenance-free

Applications

To remove fat, roots and harder incrustations
For operation with recycling water and fresh water

enz® - Bulldog® Rotating nozzle - grease

enz® Bulldog 60 - Hydro jetting a culvert

enz® Bulldog 100 - Rotating sewer cleaning nozzle for recycled water

Bulldog 30 1/4" NPT - 3/8" NPT

Item number	Item name
400.030AN	BULLDOG Rotating Nozzle 1.18"	1/4" NPT	1.4 - 3.1	6.6	4 x M6	-	1 x M4	1.24 x 3.0	0.8	ok	5000
400.030BN	BULLDOG Rotating Nozzle 1.18"	3/8" NPT	1.4 - 3.1	6.6	4 x M6	-	1 x M4	1.24 x 3.0	0.8	ok	5000

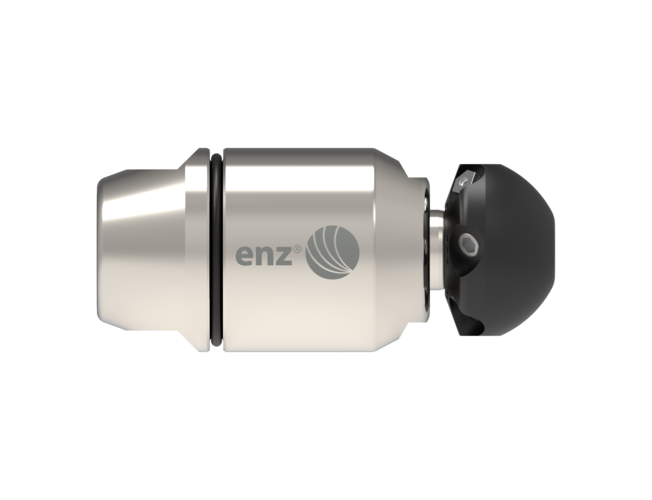

Bulldog 37 low flow 1/4" NPT - 1/2"

Item number	Item name
408.037	BULLDOG Rotating Nozzle 37-2	1/2"	1.6 - 4	6.5	50°: 2 x M6	-	1x M6	15°	1.5 x 3.4	0.97	ok	5,000
408.037AN	BULLDOG rotating nozzle 37-2	1/4" NPT	1.6 - 4	6.5	50°: 2 x M6	-	1 x M6	15°	1.5 x 3.5	1.06	ok	5,000
408.037BN	BULLDOG rotating nozzle 37-2	3/8" NPT	1.6 - 4	6.5	50°: 2 x M6	-	1 x M6	15°	1.5 x 3.5	1.01	ok	5,000

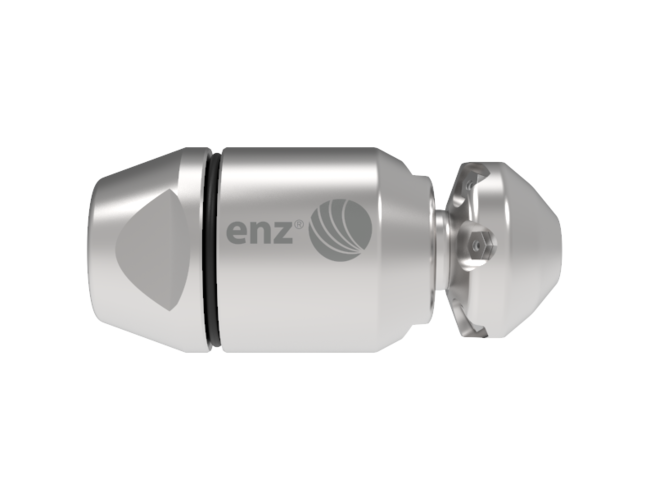

Bulldog 37 1/2"

Item number	Item name
400.037	BULLDOG Rotating nozzle 1.45"	1/2"	1.6 - 5	13	30°: 6 x M6	-	1 x M6		15°	1.5 x 3.4	0.93	ok	2,900
400.037S	BULLDOG Rotating nozzle 1.45"	1/2"	1.6 - 5	24	30°: 6 x M6	3 x M4	1 x M6	25°	15°	1.5 x 3.4	0.93	ok	2,900

Bulldog 37 with skid 1/2"

Item number	Item name
401.037	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	11	80°: 3 x M6	-	-			2.4 x 4.8	1.59	ok	5,000
401.037S	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	16	80°: 3 x M6	3 x M4	-	25°		2.4 x 4.8	1.59	ok	5,000
404.037	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	13	30°: 3 x M6, 80°: 3 x M6	-	-			2.4 x 4.8	1.59	ok	5,000
404.037S	BULLDOG Rotating nozzle	1/2"	3 - 8	21	30°: 3 x M6, 80°: 3 x M6	3 x M4	-	25°		2.4 x 4.8	1.59	ok	5,000
406.037	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	17	30°: 6 x M6	-	2 x M4		30°/15°	2.4 x 4.8	1.59	ok	5,000
406.037S	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	22	30°: 6 x M6	3 x M4	2 x M4	25°	30°/15°	2.4 x 4.8	1.59	ok	5,000

Accessory and wearing parts Bulldog 30 - 37 1/4" NPT - 1/2"

Item number		Item name
00100.030101	Head Bulldog 30 without inserts	Head Bulldog 30 without inserts			1.1 x 0.78	0.12

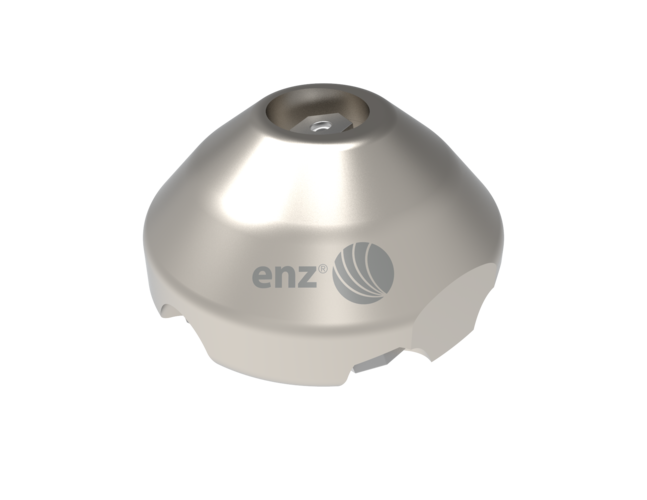

00100.037101	Head Bulldog 1/2"	Head Bulldog 1/2"			1.3 x 0.8	0.18
00100.037104	Head KBR Bulldog 37	Head KBR Bulldog 37			1.3 x 1.2	0.23
00100.037107	Head Bulldog 1/2" 3x2	Head Bulldog 1/2" 3x2			1.3 x 0.8	0.13
00100.03720	Cage for Bulldog 37	Cage for Bulldog 37	1/2"	3 - 8	2.4 x 3.1	0.58
