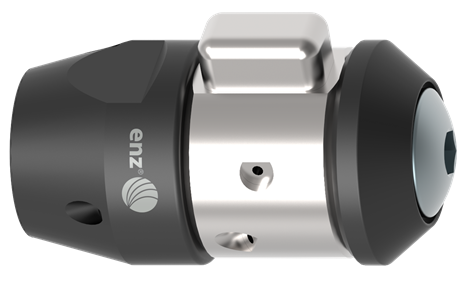

Rotopuls nozzles 1/8" NPT - 1/4" NPT
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 04.016ANE08 |
Rotopuls Ø 16mm |
1/8" NPT | 2 - 4 | 4 | 4 x 0.8 | - | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016ANE10 |
Rotopuls Ø 16mm |
1/8" NPT | 2 - 4 | 4 | 4 x 1.0 | - | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016ANES08 |
Rotopuls Ø 16mm mit Schub |
1/8" NPT | 2 - 4 | 7 | 4 x 0.8 | 3 x 0.8 | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016ANES10 |
Rotopuls Ø 16mm mit Schub |
1/8" NPT | 2 - 4 | 7 | 4 x 1.0 | 3 x 0.8 | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016BNE08 |
Rotopuls Ø 16mm |
1/4" NPT | 2 - 4 | 4 | 4 x 0.8 | - | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016BNE10 |
Rotopuls Ø 16mm |
1/4" NPT | 2 - 4 | 4 | 4 x 1.0 | - | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016BNES08 |
Rotopuls Ø 16mm mit Schub |
1/4" NPT | 2 - 4 | 7 | 4 x 0.8 | 3 x 0.8 | * | 0.8 x 1.1 | 0.03 | 5,000 | |
| 04.016BNES10 |
Rotopuls Ø 16mm mit Schub |
1/4" NPT | 2 - 4 | 7 | 4 x 1.0 | 3 x 1.0 | * | 0.8 x 1.1 | 0.03 | 5,000 |
Rotopuls nozzles 1/8" NPT - 1/4" NPT

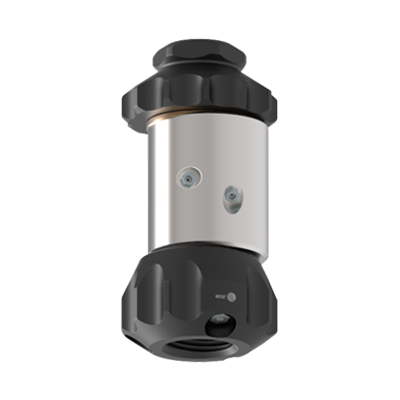

Rotopuls nozzles 1/4" NPT - 1 1/4"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 01.028ANE |
ROTOPULS vibrating nozzle 1.1" |
1/4" NPT | 2 - 4 | 3 | 2 x M4 | 3 x M4 | * | 1.1 x 2.2 | 0.42 | 5,000 | |
| 01.030ANE |
ROTOPULS vibrating nozzle 1.2" |
1/4" NPT | 2 - 4 | 3 | 2 x M4 | 3 x M4 | - | 1.2 x 2.0 | 0.33 | 5,000 | |
| 02.028BNE |
ROTOPULS vibrating nozzle 1.1" |
3/8" NPT | 1 - 4 | 2 | 2 x M4 | - | - | 1.1 x 2.4 | 0.44 | 5,000 | |
| 04.040AE |
ROTOPULS vibrating nozzle 1.6" |
1/2" | 3 - 6 | 5 | 4 x M4 | 3 x M6 | * | 1.6 x 3.2 | 1.16 | 5,000 | |
| 04.050AE |
ROTOPULS vibrating nozzle 2" |
1/2" | 4 - 8 | 18 | 4 x M6 | 3 x M6 | * | 2.0 x 3.8 | 2.16 | 5,000 | |
| 04.050BE |
ROTOPULS vibrating nozzle 2" |
3/4" | 4 - 8 | 18 | 4 x M6 | 3 x M6 | * | 2.0 x 3.8 | 2.16 | 3,600 | |
| 04.060EK |
ROTOPULS vibrating nozzle 2.4" |
1" | 4 - 12 | 26 | 4 x M6 | 3 x M8 | * | 2.4 x 4.4 | 3.53 | 3,600 | |
| 04.100BE |
ROTOPULS vibrating nozzle 4" |
1 1/4" | 8 - 24 | 53 | 4 x M10 | 3 x M10 | * | 3.9 x 6.9 | 15.87 | 3,600 |
Rotopuls nozzles 1/4" NPT - 1 1/4"
Rotopuls nozzles 3/8" NPT - 1/2"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 01.034ANE |
ROTOPULS vibrating nozzle 1.3" |
3/8" NPT | 1.8 - 6 | 5 | 2 x M4 | 3 x M4 | * | 1.3 x 2.3 | 0.49 | 5,000 | |
| 01.034BE |
ROTOPULS vibrating nozzle 1.3" |
1/2" | 1.8 - 6 | 5 | 2 x M4 | 3 x M4 | * | 1.3 x 2.3 | 0.49 | 5,000 | |
| 04.044AE |
ROTOPULS vibrating nozzle 1.8" |
1/2" | 3 - 6 | 5 | 4 x M4 | 3 x M6 | * | 1.7 x 3.6 | 1.32 | 5,000 | |
| 04.044NE |
ROTOPULS vibrating nozzle 1.8" |
3/8" NPT | 3 - 6 | 5 | 4 x M4 | 3 x M6 | * | 1.7 x 3.6 | 1.32 | 5,000 |
Rotopuls nozzles 3/8" NPT - 1/2"
Accessory and wearing parts Rotopuls
| Item number | Item name |
|
|
|
|||
| 004.0444E |
Centre spire for ROTOPULS 04.044AE
|
Centre spire for ROTOPULS 04.044AE |
0.5 x 1.2 | 0.04 | |||
| 95.F100M075150 |
HP Textile-Hose
|
HP Textile-Hose |
3/4" m - 1" f | 59.1 | 3.18 |
Accessory and wearing parts Rotopuls
