Rotodrill

The Rotodrill is a universal pipe cleaning nozzle suitable for pipe diameters between 1.6" and 10", depending on the design. Its special feature: Thanks to its cone-shaped rotating front jet, the Rotodrill mills through the clog in one operation. At the same time, most of the available water volume pushes the Rotodrill forward and transports the dirt out of the pipe. Customized repair kits allow for quick, easy maintenance.
In the Rotodrill REV (Reverse), the rotating jet is directed backwards. This allows deposits to be flushed efficiently out of the pipe. The pipe wall is cleaned at the same time.

Application:
Sludge deposits, fine roots, clogs, and maintenance cleaning.

Testing the enz® Rotodrill

Rotodrill 36.025 - Assembly of the repair kit

enz® Rotodrill™

Rotodrill™ repair

enz® Bend Rotodrill - Assembly of the repair kit

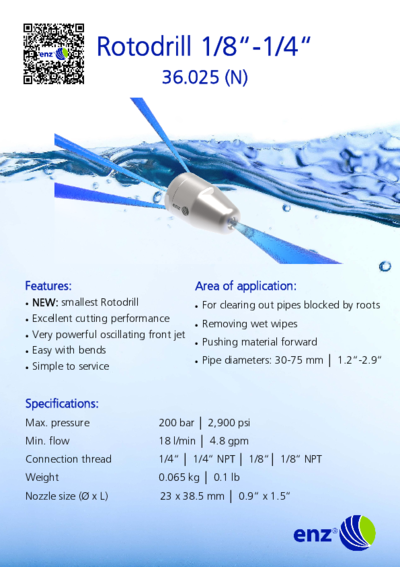

Rotodrill 1/8" NPT - 1/4" NPT

Item number	Item name

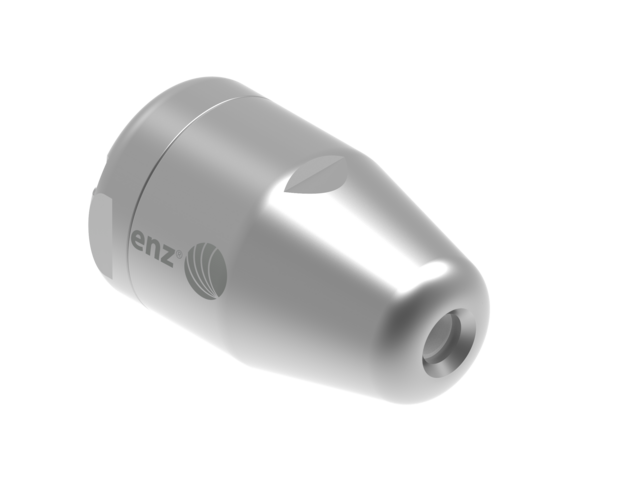

36.025ANS	Rotodrill	1/8" NPT	1.6 - 4	4.8	3 x 1.0	1 x 0.90	7°	12°	0.9 x 1.5	0.1	2,900
36.025BNS	Rotodrill	1/4" NPT	1.6 - 4	4.8	3 x 1.0	1 x 0.90	7°	12°	0.9 x 1.5	0.1	2,900

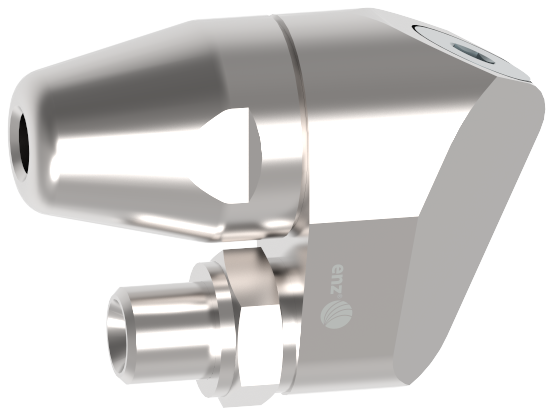

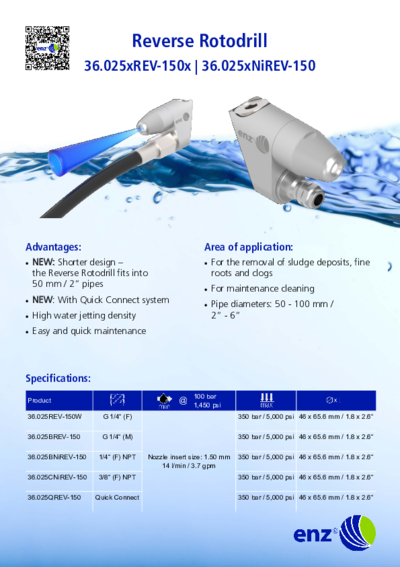

Reverse Rotodrill 1/4" NPT - 3/8" & Quick Connect

Item number	Item name
36.025BNiREV-150	Reverse Rotodrill	1/4" NPT (F)	2.0 - 5.9	3.7	1 x 1.50	1.8 x 2.6	0.485	5,000
36.025CNiREV-150	Reverse Rotodrill	3/8" NPT (F)	2.0 - 5.9	3.7	1 x 1.50	1.8 x 2.6	0.507	5,000
36.025QREV-150	Reverse Rotodrill	Quick Connect	2.0 - 5.9	3.7	1 x 1.50	1.8 x 2.6	0.485	5,000

Rotodrill 3/8" NPT - 1"

Item number	Item name
36.038N	Rotodrill	3/8" NPT	2 - 6	6.6	6 x M4	1 x 0.90 - 1.80	15°	7°	1.3 x 2.6	0.66	5,000

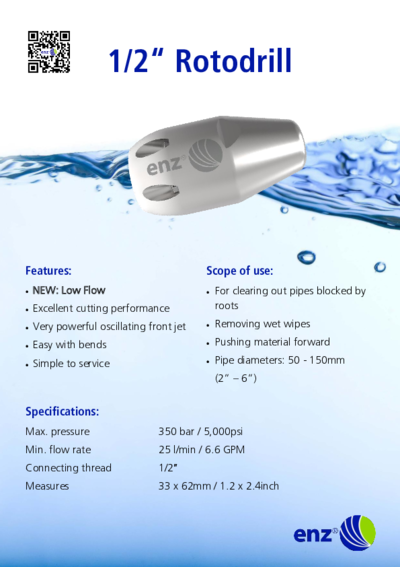

36.050	Rotodrill	1/2"	2 - 6	6.6	6 x M4	1 x 0.90 - 1.80	15°	7°	1.3 x 2.4	0.44	5,000
36.075	Rotodrill	3/4"	3 - 8	20	6 x M6	1 x 0.90 - 1.80	30°	7°	1.5 x 3.0	0.75	5,000

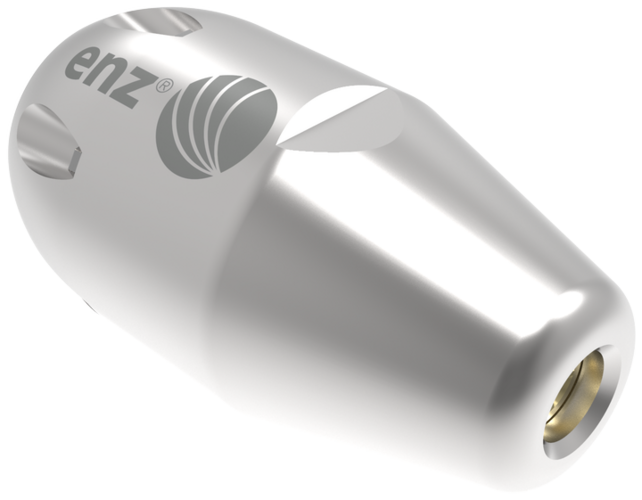

36.100	Rotodrill	1"	4 - 10	27	6 x M8	1 x 2.70	25°	7°	2.2 x 3.7	1.91	3,600

Wearing parts Rotodrill

Item number		Item name
66.21040-020	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Ø 0.90	0.06

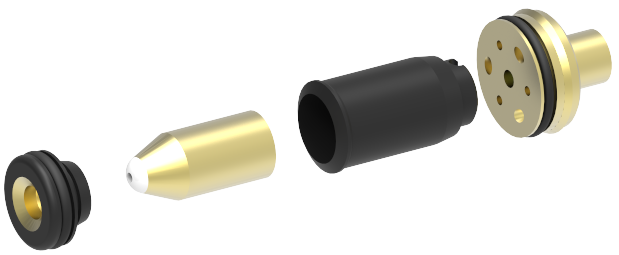

66.21040-040	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Ø 1.20	0.06
66.21040-060	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Ø 1.50	0.06
66.21040-080	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Repair Set for Rotodrill 36.0xxx / 36.0xxNiREV	Ø 1.80	0.06
66.21060-200	Re-build kit for Rotodrill 36.100	Re-build kit for Rotodrill 36.100	Ø 2.70	0.11

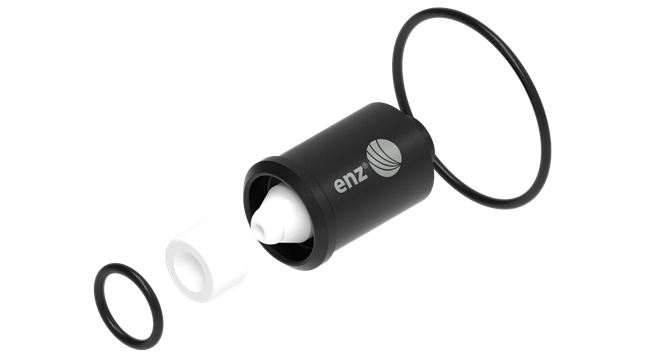

66.36025-090	Repair Set for Rotodrill 36.025xNS	Repair Set for Rotodrill 36.025xNS	Ø 0.90	0.022

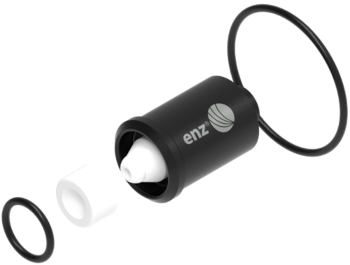

66.36025-150	Repair Set for Reverse Rotodrill 36.025xREV-xxx / 36.025xNiREV-xxx	Repair Set for Reverse Rotodrill 36.025xREV-xxx / 36.025xNiREV-xxx	Ø 1.50	0.022

Maintenance tools & accessories Rotodrill

Item number		Item name
19.M025F025NFIX	Adapter G 1/4" - 1/4" NPT	Adapter G 1/4" - 1/4" NPT	G 1/4" - 1/4" NPT	0.11
19.M025MST-245	Quick connect adapter	Quick connect adapter	M 1/4 - ST-245	0.03
L.36.503	Assembly aid for O-ring for Rotodrill	Assembly aid for O-ring for Rotodrill		0.07
W.36.503	Mounting aid for ceramic for Rotodrill	Mounting aid for ceramic for Rotodrill		0.09
