Recycling impact milling cutters

IMC 100 - 150 (3.9" - 5.9")

IMC 100 - 150 (3.9" - 5.9")
  Item number Item name
14.100R

Impact Milling Cutter Recycling 3.9"

 1" 3.9 26 3 x M8 3 x M10 3.5 x 13.8 27.1 ok 2,200
14.120R

Impact Milling Cutter Recycling 4.7"

 1" 4.7 31 3 x M8 3 x M10 4.4 x 13.8 30.20 ok 2,200

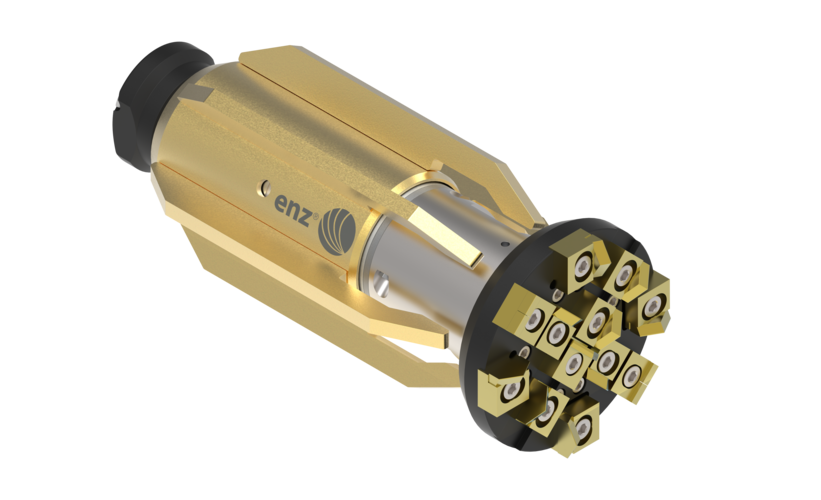

14.150R

Impact Milling Cutter Recycling 5.9"

 1" 5.9 40 3 x M8 3 x M10 5.4 x 13.8 35.9 ok 2,200
IMC 200 - 450 (7.9" - 17.7")

IMC 200 - 450 (7.9" - 17.7")
  Item number Item name
14.200R

Impact Milling Cutter Recycling Ø 7.9"

 1", 1 1/4" 7.9 53 3 x M10 3 x M10 6.8 x 23.6 95.68 ok 2,200
14.225R

Impact Milling Cutter Recycling Ø 8.9"

 1", 1 1/4" 8.9 58.1 3 x M10 3 x M10 7.9 x 23.6 101.41 ok 2,200
14.250R

Impact Milling Cutter Recycling Ø 9.9"

 1", 1 1/4" 9.9 63.4 3 x M10 3 x M10 8.7 x 23.6 115.74 ok 2,200
14.300R

Impact Milling Cutter Recycling Ø 11.8"

 1", 1 1/4" 11.8 73.9 3 x M10 3 x M10 11.8 x 28 211.6 ok 2,200

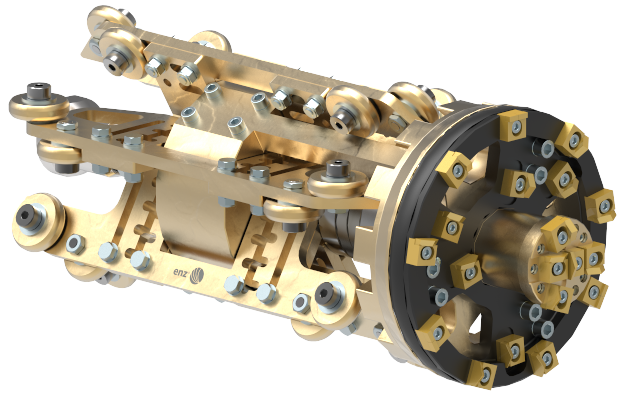

14.350R

Impact Milling Cutter Recycling Ø 13.8"

 1", 1 1/4" 13.8 73.9 3 x M10 3 x M10 13.8 x 28 218.2 ok 2,200

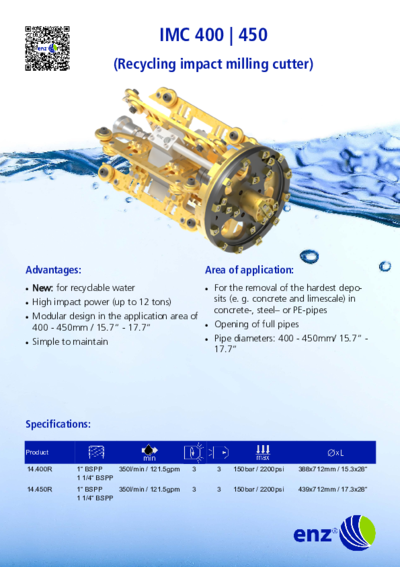

14.400R

Impact Milling Cutter Recycling Ø 15.8"

 1", 1 1/4" 15.8 92.5 3 x M10 3 x M10 - 15.2 x 28 251.3 ok 2,200
14.450R

Impact Milling Cutter Recycling Ø 17.7"

 1", 1 1/4" 17.7 92.5 3 x M10 3 x M10 - 17.1 x 28 258 ok 2,200
Retrofit kits

Retrofit kits
  Item number Item name

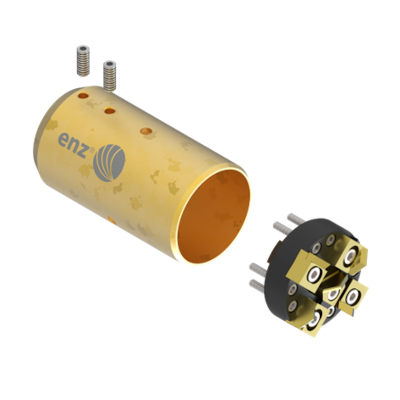

14.100KR-KIT

Retrofit kit from 14.1xxR (Ø 4.7" & 5.9") to 14.100R (Ø 3.9")

 3.9 10.36
14.120KR-KIT

Retrofit kit from 14.1xxR (Ø 3.9" & 5.9") to 14.120R (Ø 4.7")

 4.7 13.36

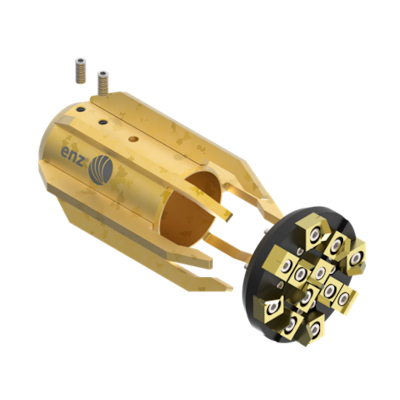

14.150KR-KIT

Retrofit kit from 14.1xxR (Ø 3.9" & 4.7") to 14.150R (Ø 5.9")

 5.9 19.14

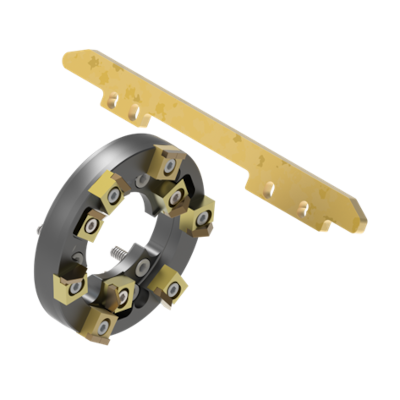

14.200KR-KIT

Retrofit kit from 14.2xxR (Ø 8.9" & 9.9") to 14.200R (Ø 7.9")

 7.9 8.8

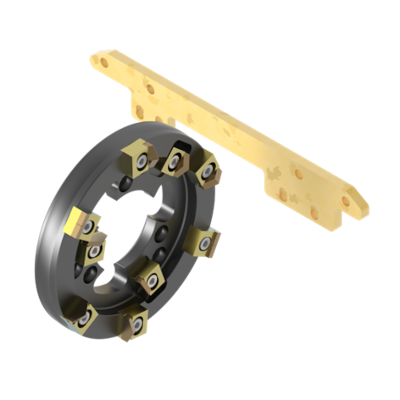

14.225KR-KIT

Retrofit kit from 14.2xxR (Ø 7.9" & 9.9") to 14.225R (Ø 8.9")

 8.9 19.84

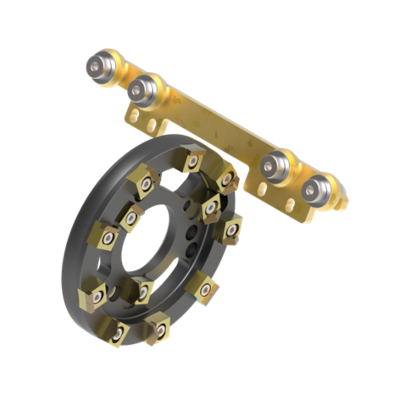

14.250KR-KIT

Retrofit kit from 14.2xxR (Ø 7.9" & 8.9") to 14.250R (Ø 9.9")

 9.9 20.1
14.400R-KIT

Retrofit kit from 14.3xxR (Ø11.8" & 13.8") to 14.400R (Ø15.8")

 15.8 93

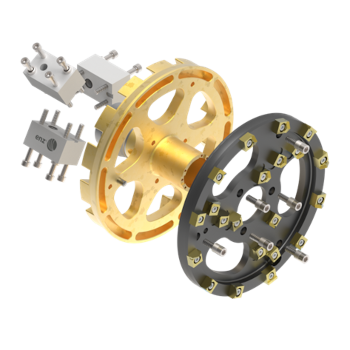

14.450R-KIT

Retrofit kit from 14.3xxR (Ø11.8" & 13.8") to 14.450R (Ø17.7")

 17.7 99
Cutting teeth

Cutting teeth
  Item number Item name
1419.0825

Cylinder-head screw for cam plate M8

 0.008
15.Z1

Milling tooth for center

 0.18

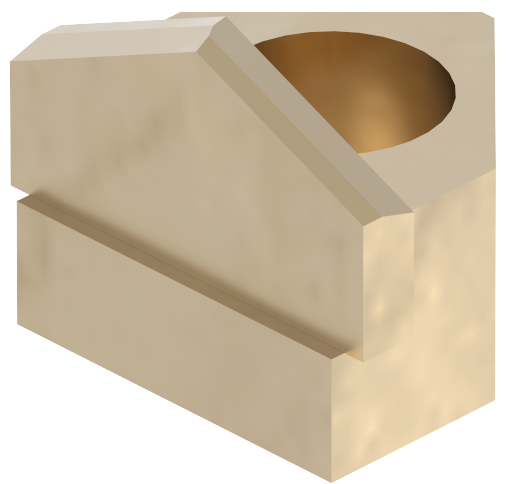

15.Z1-100

Impact tooth for center

 0.13

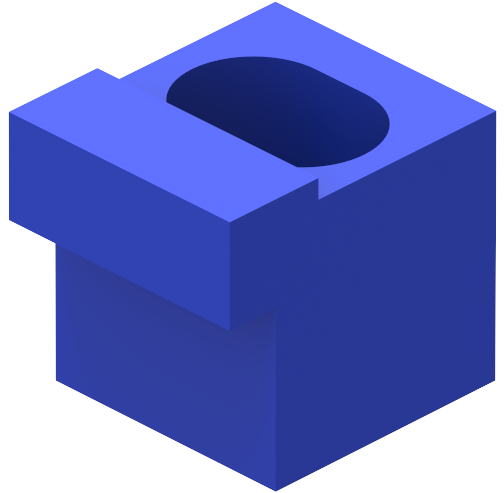

15.ZD

Diamant milling tooth

 0.17

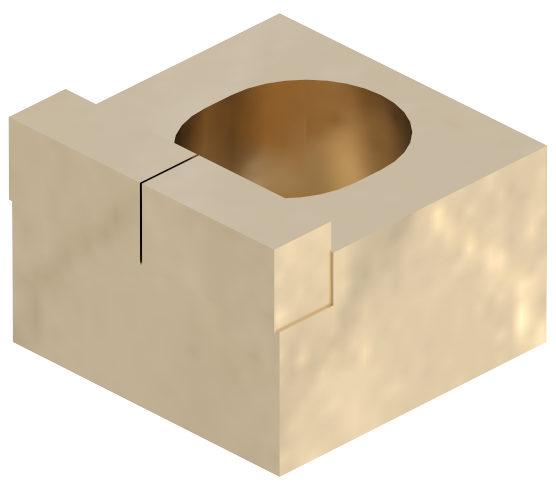

15.ZHU

Circumferential milling tooth

 0.24
15.ZU

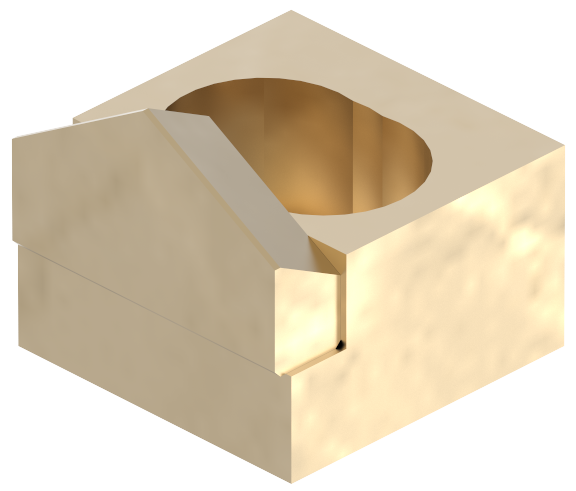

Universal milling tooth (all Ø)

 0.18

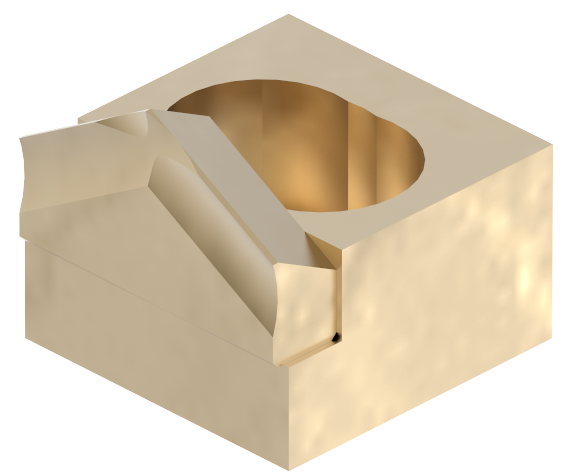

15.ZU-GSL

Milling tooth for plastic

 0.11
65212.08

Nord-Lock washer M8

 0.002
Cages

Cages
  Item number Item name
0014.1004R

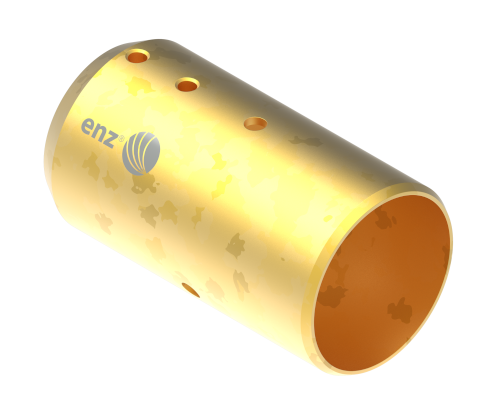

Cage Ø 3.9"

 3.9 7.0

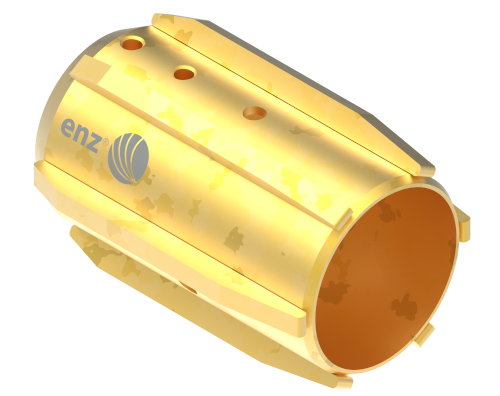

0014.1204R

Cage Ø 4.7"

 4.7 8.6

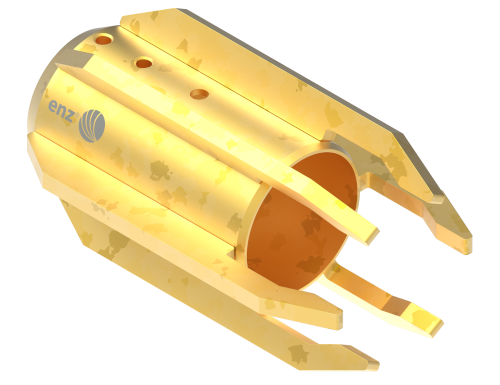

0014.1504R

Skid body for cutter Ø 5.9"

 5.9 8.6

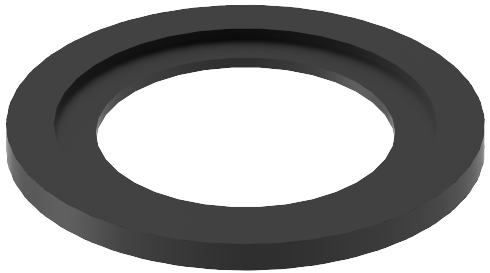

14.G

Glide plate cutter 200 - 600

 0.55

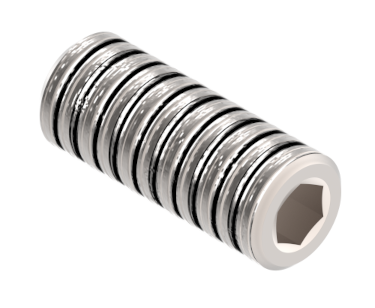

617.1025

Set screw for cage installation M10x25
Hubs

Hubs
  Item number Item name

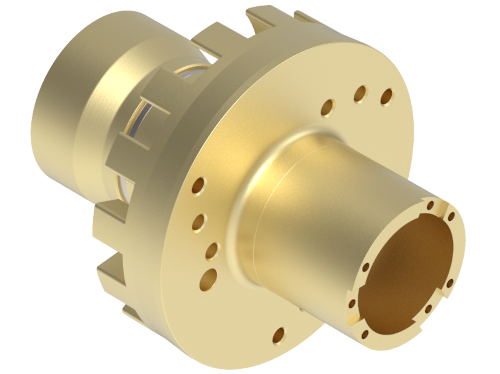

14.200NAR

Hub for recycling impact milling cutter

 7.9 - 9.8 16.7

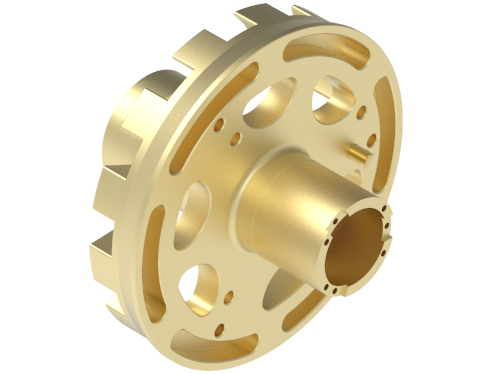

14.300NAR

Hub for recycling impact milling cutter for 14.3xxR

 11.8 - 14.8 33.46

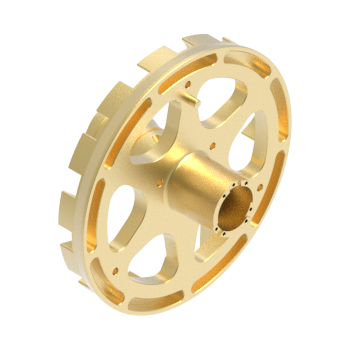

14.400NAR

Hub for recycling impact milling cutter for 14.4x0R

 15.8 - 17.7 44.04
Center caps and cutter heads

Center caps and cutter heads
  Item number Item name
14.100KR

Impact milling cutter head for Ø 3.9"

 3.9 7.8
14.120KR

Cutter head with teeth for Ø 120mm (4.7")

 4.7 7.8
14.150KR

Cutter head with teeth for Ø 150mm (5.9")

 5.9 7.8
14.200KR

Cutter head with teeth Ø 200mm (7.9")

 7.9 8.16
14.225KR

Cutter head with teeth Ø 225mm (8.9")

 8.9 8.16
14.250KR

Cutter head with teeth Ø 250mm (9.8")

 9.8 12.13
14.300KR

Cutter head with teeth Ø 300mm (11.8")

 11.8 16.54
14.350KR

Cutter head with teeth Ø 350mm (13.8")

 13.8 21.83
14.375KR

Cutter head with teeth Ø 375mm (15")

 14.76 26.455
14.400KR

Cutter head with teeth Ø 400mm (15.8")

 15.8 30.81

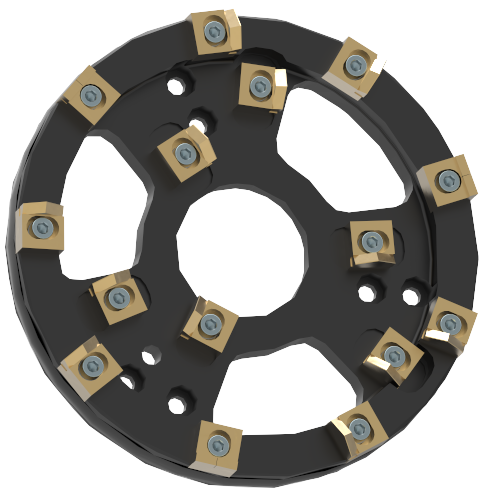

14.450KR

Cutter head with teeth Ø 450mm (17.7")

 17.7 36.55
1420.0640

Cylinder screw M6x40

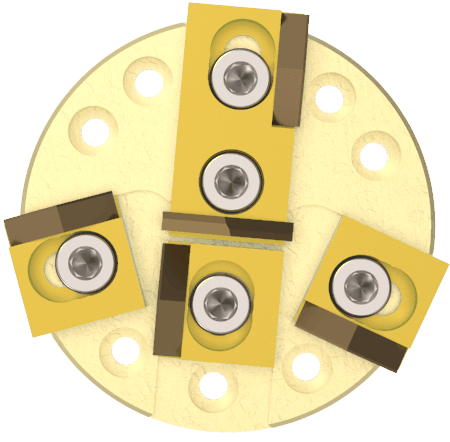

15.ZK

Center cap with teeth

 1.98
15.ZKB

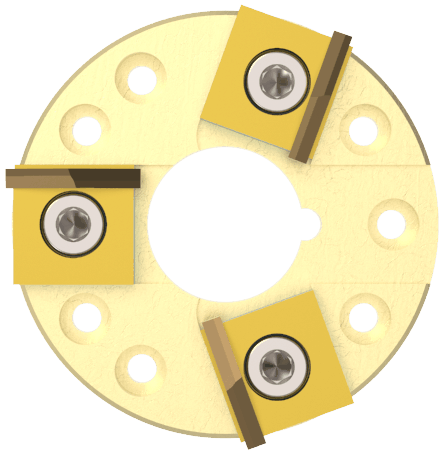

Center cap with borehole for pull rod

 1.32
Diamond crown drill bits

Diamond crown drill bits
  Item number Item name
14.100D

Diamond crown drill bit Ø 3.9"

 3.9 1.87
14.120D

Diamond crown drill bit Ø 4.7"

 4.7 2.42

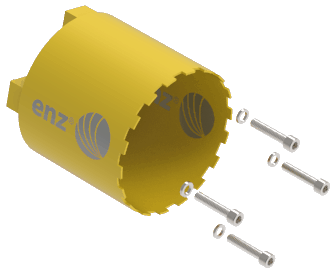

14.150D

Diamond crown drill bit Ø 5.9"

 5.9 4.96
14.200D

Diamond crown drill bit Ø 7.8"

 7.8 6.83
14.250D

Diamond crown drill bit Ø 9.9"

 9.9 6.83

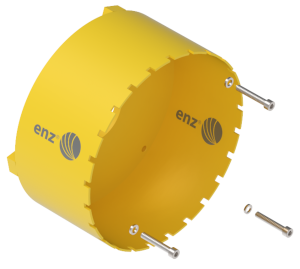

14.300D

Diamond crown drill bit Ø 11.8"

 11.8 15.65
14.350D

Diamond crown drill bit Ø 13.8"

 13.8 28.6
14.400D

Diamond crown drill bit Ø 15.8"

 15.7 34.52
Miscellaneous

Miscellaneous
  Item number Item name
0014.00021

Skid roller Ø 2.36" to IMC 11.8 - 17.7"

 11.8 - 17.7 0.68

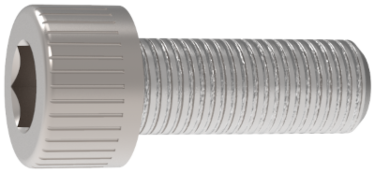

0014.0616T

Cylinder-head screw for cam plates M6 x 16

 0.008
0014.1503

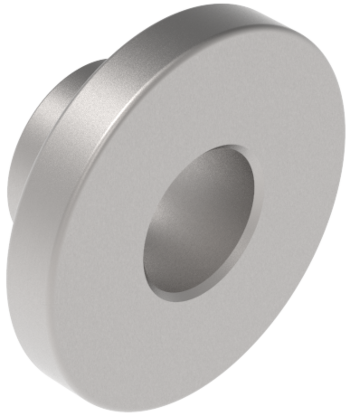

Head cover for impact milling cutter Ø 3.9" - 5.9"

 3.9 - 4.7 0.522
0014.20071R

Skid for impact milling cutter recycling 7.9" RP

 7 1.64

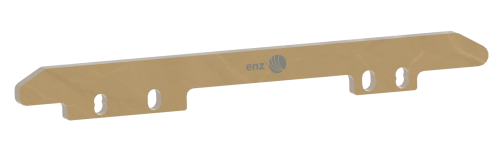

0014.2007R

Skid for IMC 200

 7.9 1.64

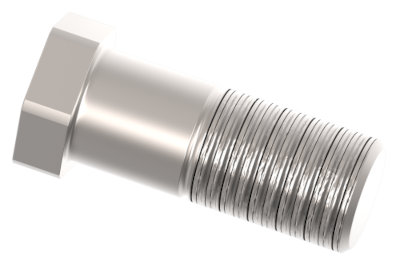

0014.221554

Center screw

 0.441

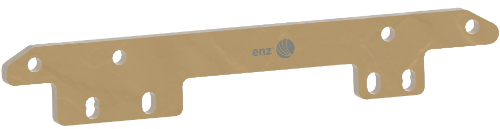

0014.2257R

Skid for IMC 225-250

 8.9 - 9.9 2.11
0014.25071R

Skid roller Ø 1.57" for IMC 9.9"

 9.9 0.25

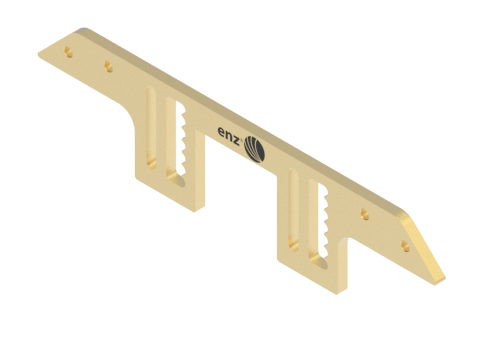

0014.300712R

Skid without flaps for IMC 300 - 450

 11.8 - 15.7 5.11

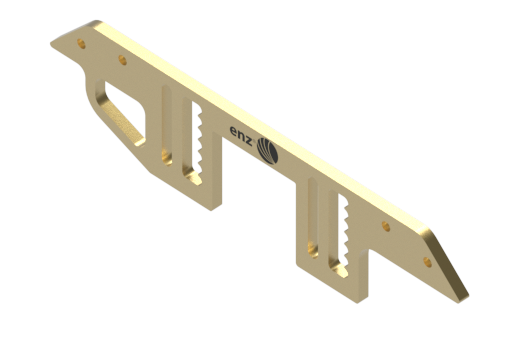

0014.300722R

Skid with flaps for IMC 300 - 450

 11.8 - 17.7 5.45
0014.30076R

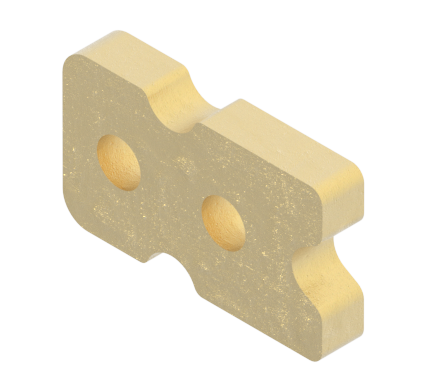

Rail clip IMC 11.8" - 17.7"

 11.8 - 17.7 0.32

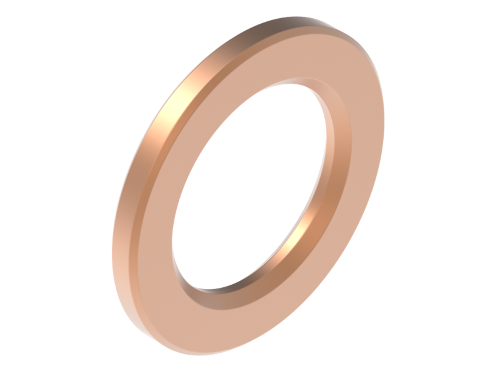

0014.NAR08

Aluminum bronze washer

 0.21
0014.NAR11

Locking nut to IMC

 0.57
14.99001

Torque wrench (12 - 180 Nm)

 0.24

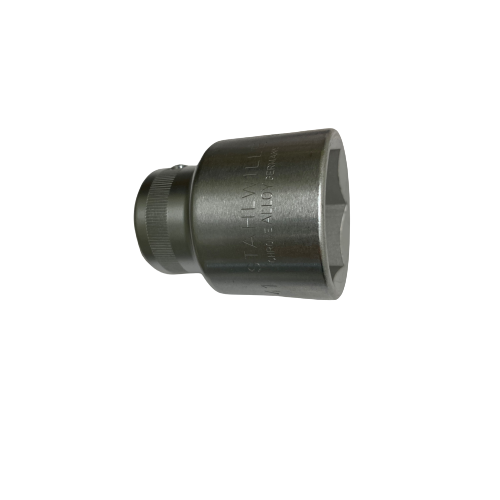

14.99002

Hex socket 3/4" SW 41

 0.24

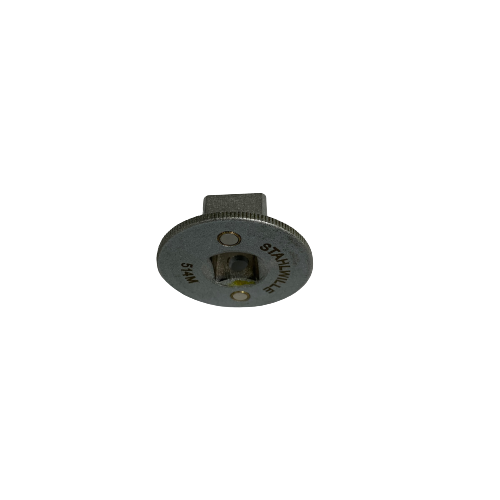

14.99003

Transition piece with magnet 3/4" to 1/2"

 0.24
14.99004

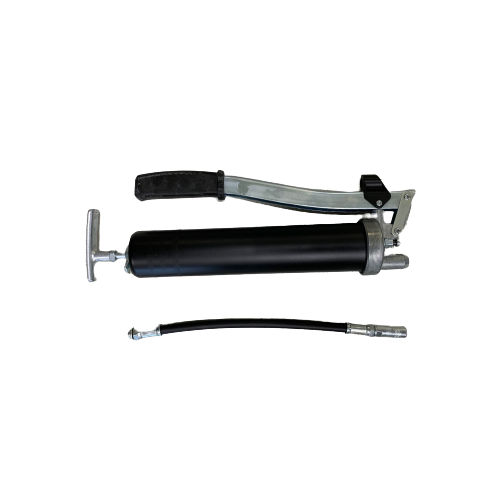

Hand lever grease gun

 0.24
14.99008

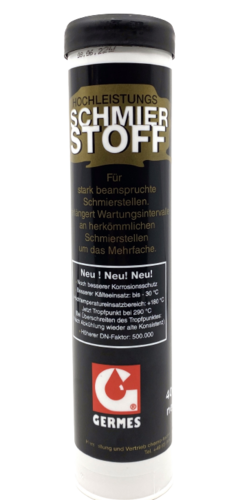

High-performance grease

 0.88
14.99009

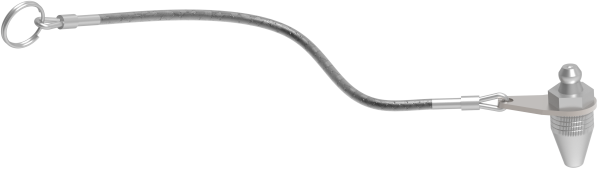

Grease gun adapter for swivel joint

 0.24
124.12

Hex nut for skid rollers M12
1359.161220

Shoulder bolt for skid roller M12

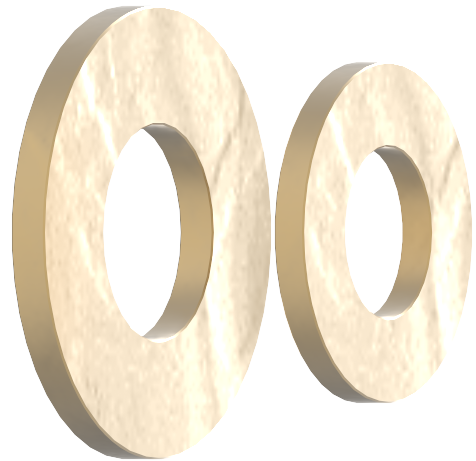

14.D

Spacers

 0.65
14.D80

Spacer Ø 3.15"

 0.44
14.K05

Cam plate 0.19"

 0.97

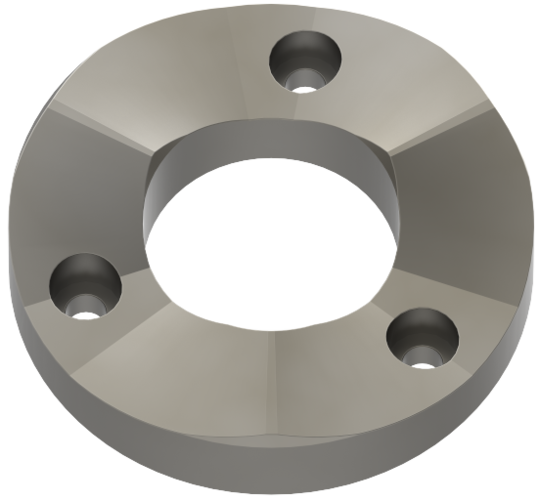

14.KR35W

Cam plate 0.14"

 1.79
14.KW05

Cam plate 5mm

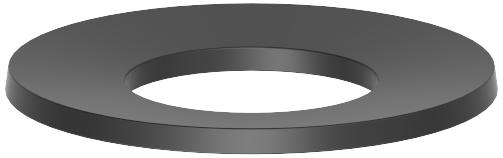

14.T1

Disk spring quenched and tempered 0.14"

 0.22

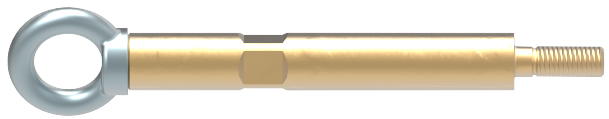

14.ZSR

Pull rod M16

 2.65
20141.08SS

Nord-Lock wedge lock washer M8 SS

 0.008
20141.10SPSS

Nord-Lock wedge lock washer M10 SPSS

 0.008

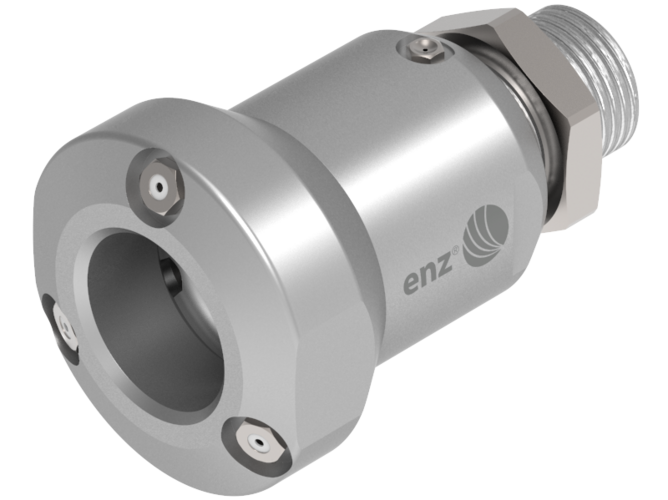

24.125S

Swivel joint with thrust jets

 1" m - 1 1/4" f 3 x M10 3.2 x 5.0 4.08 3,600
567.17342

Washer M16 for skid rollers
C191

Oil Spray Bio, 500 ml

 1.1
C192

Loctite 243 - 50 ml / 1.69 oz

 0.15
