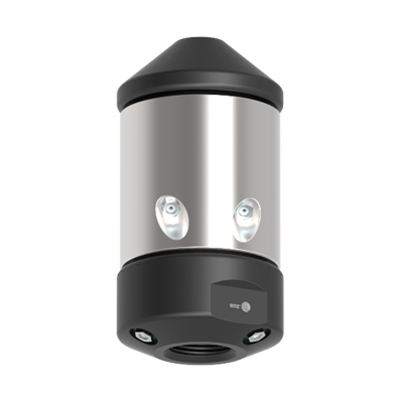

HRH nozzles

The semi-radial rotating enz® nozzles with their 4 retroacting cutting-jets at an angle of approx. 45° cause simultaneously the cleaning procedure and the thrust for the forward move of the tool i.e. the jets combine rotation and thrust in one function resulting in a low water consumption. With sufficient water capacity, optional thrust jets can facilitate upward cleaning.

Applications

Cleaning of pipes before TV-recordings
To remove mineral deposits in pipes
To remove roots up to Ø 5 mm

HRH nozzles 1/8" NPT - 1/4" NPT drilled

Item number	Item name
02.016A08N	Rotojet	1/8" NPT	1 - 2	3	2 x 0.8 - 2 x 0.7	-	*	0.6 x 1.2	0.07	5,000
02.016A13N	Rotojet	1/8" NPT	1 - 2	4	2 x 1.3 - 2 x 1.1	-	*	0.6 x 1.2	0.07	5,000
02.016B08N	Rotojet	1/4" NPT	1 - 2	3	2 x 0.8 - 2 x 0.7	-	*	0.6 x 1.2	0.07	5,000
02.016B13N	Rotojet	1/4" NPT	1 - 2	4	2 x 1.3 - 2 x 1.1	-	*	0.6 x 1.2	0.07	5,000

HRH nozzles 1/4" NPT - 3/4"

Item number	Item name
02.022BN	Rotojet 0.9"	1/4" NPT	1 - 4	3	4 x M4	-	*	0.9 x 1.6	0.2	5,000
02.028AN	Rotojet	1/4" NPT	2 - 4	2	4 x M4	-	*	1.1 x 2.2	0.45	5,000
02.028ASN	Rotojet	1/4" NPT	2 - 4	3	4 x M4	3 x M4	*	1.1 x 2.2	0.45	5,000
02.028BN	Rotojet HRH 1.1"	3/8" NPT	2 - 4	2	4 x M4	-	*	1.1 x 2.2	0.45	5,000
02.040A	Rotojet 1.6"	1/2"	3 - 6	4	4 x M6	-	*	1.6 x 3.2	1.24	5,000
02.040AS	Rotojet 1.6" with thrust jets	1/2"	3 - 6	9	4 x M6	3 x M6	*	1.6 x 3.2	1.24	5,000
02.050A	Rotojet 2"	1/2"	4 - 8	9	4 x M6	-	*	2.0 x 3.9	2.43	5,000
02.050AS	Rotojet 2" with thrust jets	1/2"	4 - 8	9	4 x M6	3 x M6	*	2.0 x 3.9	2.43	5,000
02.050B	Rotojet 2"	3/4"	4 - 8	8	4 x M6	-	*	2.0 x 3.9	2.43	3,600
02.050BS	Rotojet 2" with thrust jets	3/4"	4 - 8	9	4 x M6	3 x M6	*	2.0 x 3.9	2.43	3,600

HRH nozzles 1" - 1 1/4"

Item number	Item name
02.060	Rotojet 2.4"	1"	4 - 12	16	4 x M8	3 x M8	*	2.4 x 4.4	3.53	3,600

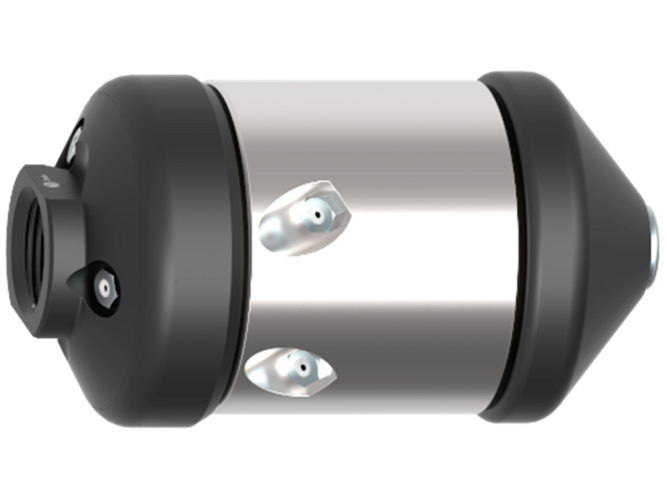

02.100A	Rotojet 4"	1"	8 - 24	53	4 x M10	3 x M10	*	2.9 x 7.1	16.31	3,600
02.100B	Rotojet 4"	1 1/4"	8 - 24	53	4 x M10	3 x M10	*	3.9 x 7.1	16.31	3,600
