Bulldog

The enz® Bulldog® rotating nozzle has been designed for operation with recycling water and fresh water. The cleverly built sliding bearing allows the use of every kind of recycled water. An integrated oil-free braking system results in a low wear and tear operation and in controlled numbers of rotation. In this way a most efficient and economic pipe cleaning is achieved. The bore of the nozzle insert determines the admissible size of the dirt particles up to a maximum Ø 1mm.

Characteristics

Easy to handle
The tool is practically maintenance-free

Applications

To remove fat, roots and harder incrustations
For operation with recycling water and fresh water

enz® - Bulldog® Rotating nozzle - grease

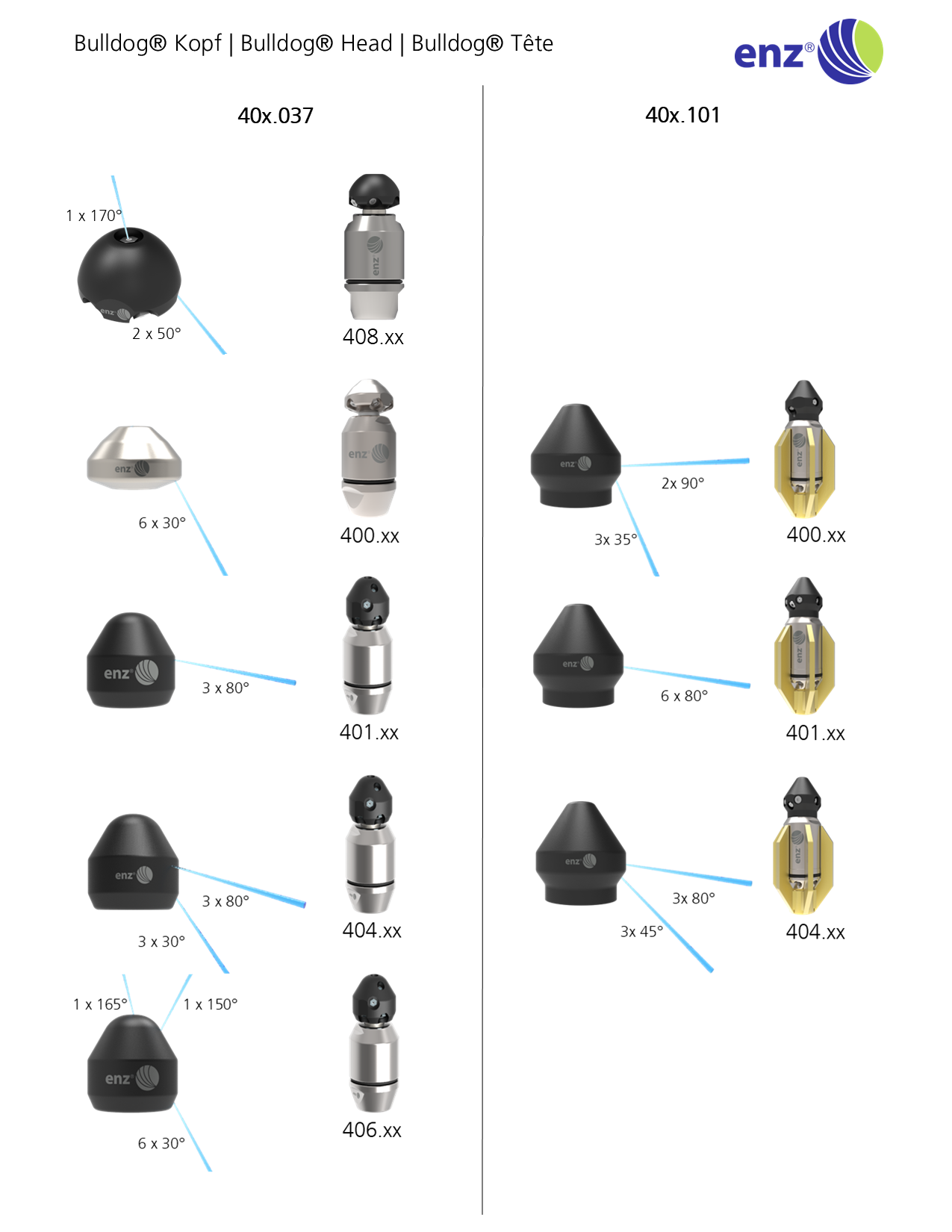

Bulldog data sheet US

Bulldog low flow 1/4" NPT - 1/2"

Item number	Item name
408.037	BULLDOG rotating nozzle 37-2	1/2"	1.6 - 4	6.5	50°: 2 x M6	-	1x M6	165°	1.5 x 3.4	0.97	ok	5,000
408.037AN	BULLDOG rotating nozzle 37-2	1/4" NPT	1.6 - 4	6.5	50°: 2 x M6	-	1 x M6	170°	1.5 x 3.5	1.06	ok	5,000
408.037BN	BULLDOG rotating nozzle 37-2	3/8" NPT	1.6 - 4	6.5	50°: 2 x M6	-	1 x M6	170°	1.5 x 3.5	1.01	ok	5,000

Bulldog 1/2" - 3/4"

Item number	Item name
400.037	BULLDOG Rotating nozzle 1.45"	1/2"	1.6 - 5	13	30°: 6 x M6	-	1 x M6		165°	1.5 x 3.4	0.93	ok	2,900
400.037S	BULLDOG Rotating nozzle 1.45"	1/2"	1.6 - 5	24	30°: 6 x M6	3 x M4	1 x M6	25°	165°	1.5 x 3.4	0.93	ok	2,900

Bulldog with skid 1/2" - 3/4"

Item number	Item name
401.037	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	11	80°: 3 x M6	-	-			2.4 x 4.8	1.59	ok	5,000

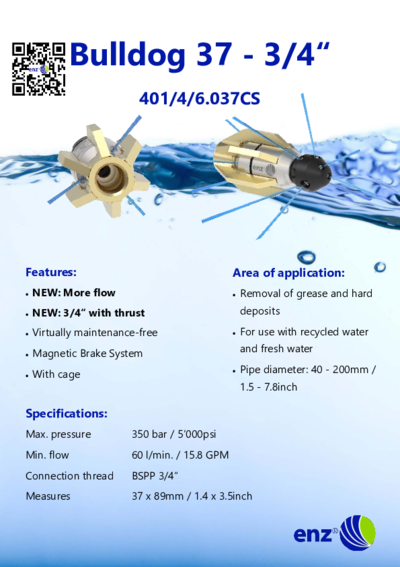

401.037CS	BULLDOG Rotating nozzle 1.45"	3/4"	3 - 8	16	80°: 3 x M6	3 x M4	-	25°		2.4 x 4.8	1.72	ok	5,000
401.037S	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	16	80°: 3 x M6	3 x M4	-	25°		2.4 x 4.8	1.59	ok	5,000
404.037	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	13	30°: 3 x M6, 80°: 3 x M6	-	-			2.4 x 4.8	1.59	ok	5,000
404.037CS	BULLDOG Rotating nozzle 1.45"	3/4"	3 - 8	21	30°: 3 x M6, 80°: 3 x M6	3 x M4	-	25°		2.4 x 4.8	1.72	ok	5,000
404.037S	BULLDOG Rotating nozzle	1/2"	3 - 8	21	30°: 3 x M6, 80°: 3 x M6	3 x M4	-	25°		2.4 x 4.8	1.59	ok	5,000
406.037	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	17	30°: 6 x M6	-	2 x M4		150°/165°	2.4 x 4.8	1.59	ok	5,000
406.037CS	BULLDOG Rotating nozzle 1.45"	3/4"	3 - 8	22	30°: 6 x M6	3 x M4	2 x M4	25°	150°/165°	2.4 x 4.8	1.72	ok	5,000
406.037S	BULLDOG Rotating nozzle 1.45"	1/2"	3 - 8	22	30°: 6 x M6	3 x M4	2 x M4	25°	150°/165°	2.4 x 4.8	1.59	ok	5,000

Accessory and wearing parts Bulldog 1/4" - 3/4"

Item number		Item name
00100.037101	Head Bulldog 1/2"	Head Bulldog 1/2"			1.3 x 0.8	0.18
00100.037104	Head KBR Bulldog 37	Head KBR Bulldog 37			1.3 x 1.2	0.23
00100.037107	Head Bulldog 1/2" 3x2	Head Bulldog 1/2" 3x2			1.3 x 0.8	0.13

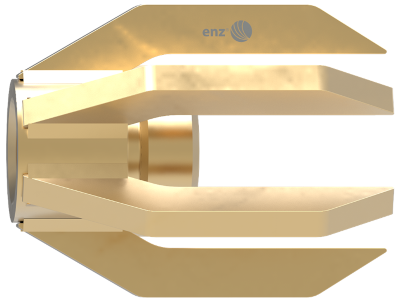

00100.03720	Cage for Bulldog 37	Cage for Bulldog 37	1/2"	3 - 8	2.4 x 3.1	0.58
00100.03720B	Skid for Bulldog 37	Skid for Bulldog 37	3/4"	3 - 8	2.35 x 3.1	0.73

Bulldog 3/4" - 1"

Item number	Item name

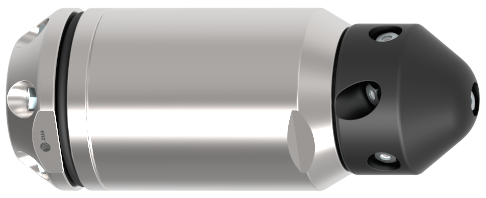

400.060A	BULLDOG Rotating nozzle 2.4"	3/4"	4 - 12	26	6 x M8	6 x M8	1 x M8	15°	2.4 x 6.0	4.63	ok	2,900
400.060B	BULLDOG Rotating nozzle 2.4"	1"	4 - 12	26	6 x M8	6 x M8	1 x M8	15°	2.4 x 6.0	4.63	ok	2,900
404.080HS100	BULLDOG 4" cage	1"	5 - 16	53	6 x M10	6 x M8	1 x M10	15°	3.9 x 8.7	8.16	ok	2,900
404.080HS150	BULLDOG 6" cage	1"	7 - 16	53	6 x M10	6 x M8	1 x M10	15°	5.9 x 10.2	12.72	ok	2,900

Accessory and wearing parts Bulldog 3/4" - 1"

Item number		Item name
100.060300	Scissors skid	Scissors skid	3/4"	12 - 32	12 - 43 x 30	19.6	5,000
00100.0807	Skid guidance for Bulldog 80 / 60	Skid guidance for Bulldog 80 / 60	1"	5 - 16	3.9 x 5.3	2.4
00100.08073	Thrust stop with O-Ring and screw	Thrust stop with O-Ring and screw				0.09
00100.0808	Skid guidance for Bulldog 80/60	Skid guidance for Bulldog 80/60	1"	7 - 16	5.9 x 7.1	6.3
00400.0605	Head Bulldog 60	Head Bulldog 60			2.0 x 1.7	0.71
00402.0805-4	Head HRH Bulldog 80	Head HRH Bulldog 80			2.5 x 2.1	1.48
00404.0805-12	Head KBR Bulldog 80	Head KBR Bulldog 80			2.5 x 2.1	1.52
100.060300J	Scissors skid with hand lever	Scissors skid with hand lever	3/4"	12 - 43	12 - 43 x 30	18.8	5,000
100.060300JP	Scissors skid with polyurethane wheels	Scissors skid with polyurethane wheels	3/4"	12 - 43	12 - 43 x 30	21.4	5,000
100.060300JS	Scissors skid with steel wheels & hand lever	Scissors skid with steel wheels & hand lever	3/4"	12 - 43	12 - 43 x 30	20.4	5,000
100.060300P	Scissors skid with polyurethane wheels	Scissors skid with polyurethane wheels	3/4"	12 - 43	12 - 43 x 30	22.2	5,000

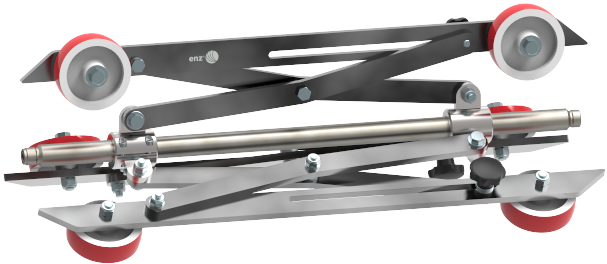

100.060300S	Scissors skid with steel wheels	Scissors skid with steel wheels	3/4"	12 - 43	12 - 43 x 30	21.2	5,000

Bulldog 1" - 1 1/4"

Item number	Item name

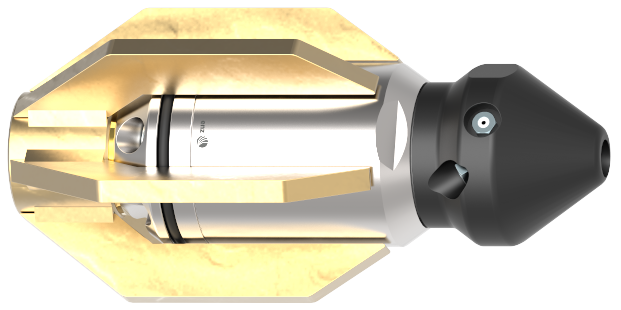

400.101A	BULLDOG Rotating nozzle 4"	1"	10 - 24	53	35°: 3 x M10, 90°: 2 x M10	6 x M10	1 x M10	15°	5.1 x 10.2	15.87	ok	2,900
400.101B	BULLDOG Rotating nozzle 4"	1 1/4"	10 - 24	53	35°: 3 x M10, 90°: 2 x M10	6 x M10	1 x M10	15°	5.1 x 10.2	15.87	ok	2,900
401.101AS	BULLDOG Rotating nozzle 4"	1"	10 - 24	53	80°: 6 x M10	6 x M10	1 x M10	15°	5.1 x 10.2	15.87	ok	2,900
401.101BS	BULLDOG Rotating nozzle 4"	1 1/4"	10 - 24	53	80°: 6 x M10	6 x M10	1 x M10	15°	5.1 x 10.2	15.87	ok	2,900
404.101AS	BULLDOG Rotating nozzle 4"	1"	10 - 24	53	80°: 3 x M10, 45°: 3 x M10	6 x M10	1 x M10	15°	5.1 x 10.2	15.87	ok	2,900
404.101BS	BULLDOG Rotating nozzle 4"	1 1/4"	10 - 24	53	80°: 3 x M10, 45°: 3 x M10	6 x M10	1 x M10	15°	5.1 x 10.2	15.87	ok	2,900

Accessory and wearing parts Bulldog 1" - 1 1/4"

Item number		Item name
00100.1017A	Skid guidance 1" for Bulldog 100mm	Skid guidance 1" for Bulldog 100mm	1" - 1 1/4"	8 - 23	6.5 x 5.3	5.1
00100.1017B	Skid guidance 5/4" Bulldog 100 mm	Skid guidance 5/4" Bulldog 100 mm	1" - 1 1/4"	8 - 23	6.5 x 5.3	5.0
100.10073	Thrust stop with O-Ring and screw	Thrust stop with O-Ring and screw
00400.1014	Head KBR Bulldog 100	Head KBR Bulldog 100			3.1 x 3.0	2.7
00400.1015	Head RGS Bulldog 100	Head RGS Bulldog 100			3.0 x 3.0	2.4
100.1004RA	Cage 16'	Cage 16'	1 1/4" m -> 1" f	16 - 39	15.0 x 22.8	22.05

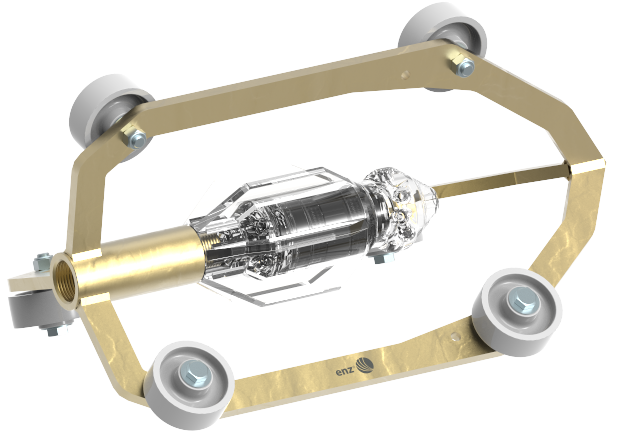

100.1004RB	Cage 16"	Cage 16"	1 1/4" m -> 1 1/4" f	16 - 39	15.0 x 22.8	22.05
100.1019A	BULLDOG Skids for cage 400.100 8"	BULLDOG Skids for cage 400.100 8"	1 1/4" - 1" f	10 - 31	7.9 x 11.4	11
100.1019B	BULLDOG Skids for cage 400.100	BULLDOG Skids for cage 400.100	1 1/4" - 1 1/4" f	10 - 31	7.9 x 11.4	10.7
