KBRV Düsen

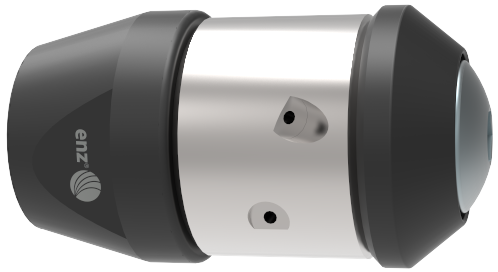

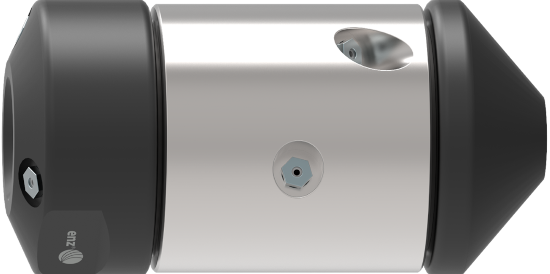

The nozzle enz^® KBRV is provided with 2 semi-radial jets directed forward in an angle of 45°. As a result, this nozzle must either be equipped with extra thrust jets or be mounted on a lance. The forward jets desintegrate most any residue and flush the debris ahead of the nozzle.

Applications

To remove plastic deposits
To clean heat exchangers
Cleaning of fat deposits
Flushing of the pipes from the house toward the main line

KBRV Düsen 1/8" - 1/4"

Artikelnummer	Artikelname
04.016AV07	Rotierdüse Ø 16mm	1/8"	18 - 60	6	90°: 2 x 0.70, 45°: 2 x 0.70	-	*	16 x 30	0.03	350
04.016AV08	Rotierdüse Ø 16mm	1/8"	18 - 60	10	90°: 2 x 0.80, 45°: 2 x 0.80	-	*	16 x 30	0.03	350
04.016AV09	Rotierdüse Ø 16mm	1/8"	18 - 60	15	90°: 2 x 0.90, 45°: 2 x 0.90	-	*	16 x 30	0.03	350
04.016AV10	Rotierdüse Ø 16mm	1/8"	18 - 60	18	90°: 2 x 1.00, 45°: 2 x 1.00	-	*	16 x 30	0.03	350
04.016AV11	Rotierdüse Ø 16mm	1/8"	18 - 60	25	90°: 2 x 1.10, 45°: 2 x 1.10	-	*	16 x 30	0.03	350
04.016AVS	RotierdüseØ 16mm mit Schub	1/8"	18 - 60	20	90°: 2 x 0.80, 45°: 2 x 0.80	3 x 0.80	*	16 x 31	0.03	350
04.016BV07	Rotierdüse Ø 16mm	1/4"	18 - 60	6	90°: 2 x 0.70, 45°: 2 x 0.70	-	*	16 x 30	0.03	350
04.016BV08	Rotierdüse Ø 16mm	1/4"	18 - 60	10	90°: 2 x 0.80, 45°: 2 x 0.80	-	*	16 x 30	0.03	350
04.016BV09	Rotierdüse Ø 16mm	1/4"	18 - 60	15	90°: 2 x 0.90, 45°: 2 x 0.90	-	*	16 x 30	0.03	350
04.016BV10	Rotierdüse Ø 16mm	1/4"	18 - 60	18	90°: 2 x 1.00, 45°: 2 x 1.00	-	*	16 x 03	0.03	350
04.016BV11	Rotierdüse Ø 16mm	1/4"	18 - 60	25	90°: 2 x 1.10, 45°: 2 x 1.10	-	*	16 x 30	0.03	350
04.016BVS	Rotierdüse Ø 16mm mit Schub	1/4"	18 - 60	20	90°: 2 x 0.80, 45°: 2 x 0.80	3 x 0.80	*	16 x 31	0.03	350

KBRV Düsen 1/4" - 1/2"

Artikelnummer	Artikelname
04.028AV	Rotierdüse Ø 28mm	1/4"	30 - 100	20	90°: 2 x M4, 45°: 2 x M4	3 x M4	*	28 x 56	0.20	350
04.040AV	Rotierdüse Ø 40mm	1/2"	70 - 150	30	90°: 2 x M6, 45°: 2 x M6	3 x M6	*	40 x 80	0.54	350
04.050AV	Rotierdüse Ø 50mm	1/2"	100 - 200	70	90°: 2 x M6, 45°: 2 x M6	3 x M6	*	50 x 99	1.10	350
